Google App Engine and JPA. This article describes the creation of a Java web application on the Google App Engine. It uses JPA. The tutorial is based on Java 1.7, Eclipse 4.4 and GAE version 1.4.2.

1. Google App Engine for Java (GAE/J)

1.1. Overview

Google offers a cloud computing infrastructure called Google App Engine (App Engine) for creating and running web applications.

App Engine allows the dynamic allocation of system resources for an application based on the actual demand. Currently App Engine supports Python and Java based applications. This includes Java Virtual Machine (JVM) based languages, e.g. Groovy or Scala. This article will cover the App Engine for Java (GAE/J)).

1.2. Standard API’s via App Engine specific API’s

The App Engine offers frequently standard Java API’s and App Engine specific API’s for the same task. If you want to be able to port your application from the AppEngine to other webcontainers, e.g. Tomcat or Jetty, you should only use Java standard API.

1.3. AppEngine technologies

App Engine uses the Jetty servlet container to host applications and supports the Java Servlet API in version 2.4. It provides access to databases via Java Data Objects (JDO) and the Java Persistence API (JPA). In the background App Engine uses https://www.vogella.com/tutorials/GoogleTechnologies/article.html#bigtable Google Bigtable] as the distributed storage system for persisting application data.

Google provides https://www.vogella.com/tutorials/GoogleTechnologies/article.html#memcache Memcache] as a caching mechanism. Developers who want to code against the standard Java API can use the JCache implementation (based on JSR 107).

1.4. Services

The App Engine provides several services. For example the Blobstore allows to upload and store and serve large data objects (blobs) with a limit of 2 Gigabyte. To create a blob you upload a file via an HTTP request.

1.5. Versions

Google App Engine supports the creation of several version of your application. In the Admin Console you can select which version should be active. Your active application "your-name" will be accessible via the URL

http://your-name.appspot.com

Each version can also be accessed for example to test a new version. The version are accessable via

http://versionnumber.latest.your-name.appspot.com

where version is for example "2" and "latest" is a fixed string.

1.6. Restrictions

App Engine runs a version of Java 6 but does not provide all Java classes, for example Swing and most AWT classes are not supported.

You cannot use Threads or frameworks which uses Threads. You can also not write to the filesystem and only read files which are part of your application. Certain "java.lang.System" actions, e.g. gc() or exit() will do nothing. You can not call JNI code. Reflection is possible for your own classes and standard Java classes but your cannot use reflection to access other classes outside your application.

A servlet needs also to reply within 30 seconds otherwise a "com.google.apphosting.api.DeadlineExceededException" is thrown.

1.7. Quotas

Google offers free hosting for websites which are not highly frequented, e.g. 5 Millions page views. The price model for the websites that exceed thier daily quota is listed on the Google billing documentation pages. The usage quotas of the App Engine are constantly changing but, at the time of this writing, are around 5 millions pages views per month, which translates approx. in 6.5 CPU hours and 1 gigabyte of outbound traffic.

Currently a user can create a maximum of 10 applications on the Google App Engine. The user can delete existing application in the Admin Console under Application Settings.

2. Installation of the Google Cloud Tools for Eclipse

Google offers an Eclipse plug-in that provides support for the development with the Eclipse IDE.

From inside Eclipse, select Help  Eclipse Marketplace…​ and search for Google Cloud Tools for Eclipse.

Google lists the currently supported version in its Google Plug-in for Eclipse page. See https://cloud.google.com/eclipse/docs/quickstart for details.

If you plan to create GWT applications, also install it via Help  Eclipse Marketplace…​ and search for GWT Eclipse Plugin.

3. Register at the Google App Engine

To deploy your application to the Google cloud you need a AppEngine account. To get such an account you need a Google email account. Open the URL App Engine registration page and login with your Google account information. You need to verify your account via a valid phone number. After providing your phone number, Google will text you a verification code via SMS. You will then type the verification code into the verification box online.

4. Running an application

4.1. On the App Engine

The process of creating an application on the Google App Engine involves the creation of an application on the Google App Engine website. Afterwards you can locally create a web application and upload this application to the created application on the Google App Engine.

To create an application on the App Engine press the button Create an application and select an application name. You have to choose one which is still available. Remember this name because we will later use this in the creation of our demo application.

4.2. Running application locally

The Eclipse Plugin allows to run applications for the Google App Engine locally in an environment which simulates the environment on the App Engine. You also have a local admin console which allow you to see your local datastore, the task queue, inbound email and XMPP traffic. You find this local admin console on

http://localhost:8888/_ah/admin/

5. Persistence with JPA

GAE/J supports JPA (Java Persistence API) 1.0 for persisting data. As all data on the GAE/J is stored in Bigtable some features of JPA are not supported. See JPA on GAE/J for details. Alternatively to JPA you can also use JDO or the low-level API of the App Engine. The datastorage facility is described in Datastore Java API Overview.

6. Developing a task management web application

6.1. Overview

In the following exercise zou create a web app for a task management system using servlets and JSP’s. The persistence will be handled by JPA. For an introduction into servlet please see Servlet and JSP development - Tutorial.

todo

6.2. Project

Create a new project called com.vogella.gae.java.todo via File  New  Web Application Project. Package name is also com.vogella.gae.java.todo.

gae10

The created project can already run. Right-click on your application, select run as  Web Application.

gae20

This should start Jetty on

http://localhost:8888/

Open the url in the browser and you should the possibility to select your servlet and to start it. If you select it you should see a "Hello, world" message.

gae25

6.3. Create your model

Create the following class which will be our model. The JPA metadata is already added.

package de.vogella.gae.java.todo.model;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;

/**
 * Model class which will store the Todo Items
 *
 * @author Lars Vogel
 *
 */
@Entity
public class Todo {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String author;

    private String summary;
    private String description;
    private String url;
    boolean finished;

    public Todo(String author, String summary, String description,
            String url) {
        this.author = author;
        this.summary = summary;
        this.description = description;
        this.url = url;
        finished = false;
    }

    public Long getId() {
        return id;
    }

    public String getAuthor() {
        return author;
    }

    public void setAuthor(String author) {
        this.author = author;
    }

    public String getShortDescription() {
        return summary;
    }

    public void setShortDescription(String shortDescription) {
        this.summary = shortDescription;
    }

    public String getLongDescription() {
        return description;
    }

    public void setLongDescription(String longDescription) {
        this.description = longDescription;
    }

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public boolean isFinished() {
        return finished;
    }

    public void setFinished(boolean finished) {
        this.finished = finished;
    }

}

6.4. Setup JPA and your DAO

To use JPA in your project you must create the JPA configuration file "persistence.xml" in the "META-INF" directory. This file contains the configuration that tells JPA to use the App Engine datastore.

<?xml version="1.0" encoding="UTF-8" ?>
<persistence xmlns="http://java.sun.com/xml/ns/persistence"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/persistence
        http://java.sun.com/xml/ns/persistence/persistence_1_0.xsd" version="1.0">

    <persistence-unit name="transactions-optional">
        <provider>org.datanucleus.store.appengine.jpa.DatastorePersistenceProvider</provider>
        <properties>
            <property name="datanucleus.NontransactionalRead" value="true"/>
            <property name="datanucleus.NontransactionalWrite" value="true"/>
            <property name="datanucleus.ConnectionURL" value="appengine"/>
        </properties>
    </persistence-unit>
</persistence>

The creation of the EntityManagerFactory is time-consuming therefore we buffer it.

package de.vogella.gae.java.todo.dao;

import javax.persistence.EntityManagerFactory;
import javax.persistence.Persistence;

public class EMFService {
    private static final EntityManagerFactory emfInstance = Persistence
            .createEntityManagerFactory("transactions-optional");

    private EMFService() {
    }

    public static EntityManagerFactory get() {
        return emfInstance;
    }
}

The following class provides the possibility to query for all todos and to add and delete todos.

package de.vogella.gae.java.todo.dao;

import java.util.List;

import javax.persistence.EntityManager;
import javax.persistence.Query;

import de.vogella.gae.java.todo.model.Todo;

public enum Dao {
    INSTANCE;

    public List<Todo> listTodos() {
        EntityManager em = EMFService.get().createEntityManager();
        // read the existing entries
        Query q = em.createQuery("select m from Todo m");
        List<Todo> todos = q.getResultList();
        return todos;
    }

    public void add(String userId, String summary, String description,
            String url) {
        synchronized (this) {
            EntityManager em = EMFService.get().createEntityManager();
            Todo todo = new Todo(userId, summary, description, url);
            em.persist(todo);
            em.close();
        }
    }

    public List<Todo> getTodos(String userId) {
        EntityManager em = EMFService.get().createEntityManager();
        Query q = em
                .createQuery("select t from Todo t where t.author = :userId");
        q.setParameter("userId", userId);
        List<Todo> todos = q.getResultList();
        return todos;
    }

    public void remove(long id) {
        EntityManager em = EMFService.get().createEntityManager();
        try {
            Todo todo = em.find(Todo.class, id);
            em.remove(todo);
        } finally {
            em.close();
        }
    }
}

6.5. Create servlets

Create the following two servlets. The first will be called if a new Todo is created the second one if a Todo is finished.

package de.vogella.gae.java.todo;

import java.io.IOException;

import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.google.appengine.api.users.User;
import com.google.appengine.api.users.UserService;
import com.google.appengine.api.users.UserServiceFactory;

import de.vogella.gae.java.todo.dao.Dao;

@SuppressWarnings("serial")
public class ServletCreateTodo extends HttpServlet {
    public void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws IOException {
        System.out.println("Creating new todo ");
        User user = (User) req.getAttribute("user");
        if (user == null) {
            UserService userService = UserServiceFactory.getUserService();
            user = userService.getCurrentUser();
        }

        String summary = checkNull(req.getParameter("summary"));
        String longDescription = checkNull(req.getParameter("description"));
        String url = checkNull(req.getParameter("url"));

        Dao.INSTANCE.add(user.getUserId(), summary, longDescription, url);

        resp.sendRedirect("/TodoApplication.jsp");
    }

    private String checkNull(String s) {
        if (s == null) {
            return "";
        }
        return s;
    }
}
package de.vogella.gae.java.todo;

import java.io.IOException;

import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import de.vogella.gae.java.todo.dao.Dao;

public class ServletRemoveTodo extends HttpServlet {
    private static final long serialVersionUID = 1L;

    public void doGet(HttpServletRequest req, HttpServletResponse resp)
    throws IOException {
        String id = req.getParameter("id");
        Dao.INSTANCE.remove(Long.parseLong(id));
        resp.sendRedirect("/TodoApplication.jsp");
    }
}

6.6. Create JSP

In the folder "war" create the following JSP "TodoApplication.jsp".

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page import="java.util.List" %>
<%@ page import="com.google.appengine.api.users.User" %>
<%@ page import="com.google.appengine.api.users.UserService" %>
<%@ page import="com.google.appengine.api.users.UserServiceFactory" %>
<%@ page import="de.vogella.gae.java.todo.model.Todo" %>
<%@ page import="de.vogella.gae.java.todo.dao.Dao" %>

<!DOCTYPE html>


<%@page import="java.util.ArrayList"%>

<html>
    <head>
        <title>Todos</title>
        <link rel="stylesheet" type="text/css" href="css/main.css"/>
          <meta charset="utf-8">
    </head>
    <body>
<%
Dao dao = Dao.INSTANCE;

UserService userService = UserServiceFactory.getUserService();
User user = userService.getCurrentUser();

String url = userService.createLoginURL(request.getRequestURI());
String urlLinktext = "Login";
List<Todo> todos = new ArrayList<Todo>();

if (user != null){
    url = userService.createLogoutURL(request.getRequestURI());
    urlLinktext = "Logout";
    todos = dao.getTodos(user.getUserId());
}

%>
    <div style="width: 100%;">
        <div class="line"></div>
        <div class="topLine">
            <div style="float: left;"><img src="images/todo.png" /></div>
            <div style="float: left;" class="headline">Todos</div>
            <div style="float: right;"><a href="<%=url%>"><%=urlLinktext%></a> <%=(user==null? "" : user.getNickname())%></div>
        </div>
    </div>

<div style="clear: both;"/>
You have a total number of <%= todos.size() %>  Todos.

<table>
  <tr>
      <th>Short description </th>
      <th>Long Description</th>
      <th>URL</th>
      <th>Done</th>
    </tr>

<% for (Todo todo : todos) {%>
<tr>
<td>
<%=todo.getShortDescription()%>
</td>
<td>
<%=todo.getLongDescription()%>
</td>
<td>
<%=todo.getUrl()%>
</td>
<td>
<a class="done" href="/done?id=<%=todo.getId()%>" >Done</a>
</td>
</tr>
<%}
%>
</table>


<hr />

<div class="main">

<div class="headline">New todo</div>

<% if (user != null){ %>

<form action="/new" method="post" accept-charset="utf-8">
    <table>
        <tr>
            <td><label for="summary">Summary</label></td>
            <td><input type="text" name="summary" id="summary" size="65"/></td>
        </tr>
        <tr>
            <td valign="description"><label for="description">Description</label></td>
            <td><textarea rows="4" cols="50" name="description" id="description"></textarea></td>
        </tr>
    <tr>
        <td valign="top"><label for="url">URL</label></td>
        <td><input type="url" name="url" id="url" size="65" /></td>
    </tr>
    <tr>
            <td colspan="2" align="right"><input type="submit" value="Create"/></td>
        </tr>
    </table>
</form>

<% }else{ %>

Please login with your Google account

<% } %>
</div>
</body>
</html>

The JSP refers to a css file. Create a folder "war/css" and create the following file "main.css".

body {
    margin: 5px;
    font-family: Arial, Helvetica, sans-serif;
}

hr {
    border: 0;
    background-color: #DDDDDD;
    height: 1px;
    margin: 5px;
}



table th {
    background:#EFEFEF none repeat scroll 0 0;
    border-top:1px solid #CCCCCC;
    font-size:small;
    padding-left:5px;
    padding-right:4px;
    padding-top:4px;
    vertical-align:top;
    text-align:left;
}

table tr {
    background-color: #e5ecf9;
    font-size:small;
}


.topLine {
    height: 1.25em;
    background-color: #e5ecf9;
    padding-left: 4px;
    padding-right: 4px;
    padding-bottom: 3px;
    padding-top: 2px;
}

.headline {
    font-weight: bold;
    color: #3366cc;
}



.done {
    font-size: x-small;
    vertical-align: top;
}


.email {
    font-size: x-small;
    vertical-align: top;
}

form td {
    font-size: smaller;
}

6.7. web.xml

Change web.xml in folder /war/WEB-INF" to the following. It will create the right servlet mapping and will set the JSP as start page.

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    version="2.5">
    <servlet>
        <servlet-name>CreateNewTodo</servlet-name>
        <servlet-class>de.vogella.gae.java.todo.ServletCreateTodo</servlet-class>
    </servlet>
    <servlet>
        <servlet-name>RemoveTodo</servlet-name>
        <servlet-class>de.vogella.gae.java.todo.ServletRemoveTodo</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>RemoveTodo</servlet-name>
        <url-pattern>/done</url-pattern>
    </servlet-mapping>
    <servlet-mapping>
        <servlet-name>CreateNewTodo</servlet-name>
        <url-pattern>/new</url-pattern>
    </servlet-mapping>
    <welcome-file-list>
        <welcome-file>TodoApplication.jsp</welcome-file>
    </welcome-file-list>
</web-app>

6.8. Run your application again

You should be able to run your application locally, login and create and delete "Todos".

todo

6.9. Maintain application

To deploy your application to the GAE you need to maintain your application ID in the file "web/WEB-INF/appengine-web.xml". In the tag "application" maintain the application you have created in GAE/J Registration. In my example I use the application "vogellatodo".

<?xml version="1.0" encoding="utf-8"?>
<appengine-web-app xmlns="http://appengine.google.com/ns/1.0">
    <application>vogellatodo</application>
    <version>1</version>

    <!-- Configure java.util.logging -->
    <system-properties>
        <property name="java.util.logging.config.file" value="WEB-INF/logging.properties"/>
    </system-properties>

</appengine-web-app>

6.10. Deploy your application

Now deploy your application to the Google cloud. The following assumes that you have already created your account.

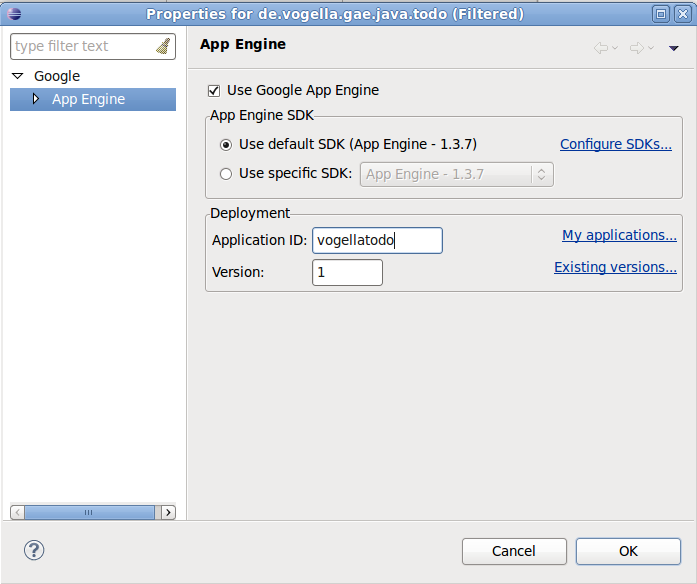

Right-click on your project and select Google > App Engine Settings…​ from the context menu. Check that the application ID is as you maintained it in "appengine-web.xml".

gae30

Right-click on your project, Select Google → Deploy to App Engine. You need to login with your Google account information.

deploy10

After the upload completes you will find your application online under

http://application-id.appspot.com

e.g. in my case

http://vogellatodo.appspot.com.

7. Email handling

AppEngine allows your application to send and receive emails. We will use the receive email feature to be able to receive new TODOs via email.

To receive emails in your application you have to declare that your application is allowed to use the mail service. Add the service "mail" to your "appengine-web.xml".

<?xml version="1.0" encoding="utf-8"?>
<appengine-web-app xmlns="http://appengine.google.com/ns/1.0">
    <application>vogellatodo</application>
    <version>1</version>

    <!-- Configure java.util.logging -->
    <system-properties>
        <property name="java.util.logging.config.file" value="WEB-INF/logging.properties"/>
    </system-properties>

    <inbound-services>
        <service>mail</service>
    </inbound-services>

</appengine-web-app>

After redeploying your app you can check in the admin console of the appengine under Application Settings if incoming email is allowed.

admin10

After defining that your application can receive email you need to define the email address for your application. The email address would be:

user@appid.appspotmail.com

This address follows the pattern: "user@domain". The domainis based on the applicationid, e.g. "applicationid.appspotmail.com". Please note that string@appid.appspotmail.com appspotmail.com is different from appspot.com, which we use in the domain name of our application. You can add use any user you want as long as you provide a mapping to a servlet in web.xml.

Via the web.xml you define which servlet answers to which user. The url pattern must start with "/_ah/mail/" to tell AppEngine that this is a mapping for receiving emails. The url pattern can include wildcards.

We will define that one servlet receives the email for all users. Add the following servlet mappings to your web.xml, make sure you replace the string "applicationid" with your real id.

<?xml version="1.0" encoding="utf-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
    version="2.5">
    <servlet>
        <servlet-name>CreateNewTodo</servlet-name>
        <servlet-class>de.vogella.gae.java.todo.ServletCreateTodo</servlet-class>
    </servlet>
    <servlet>
        <servlet-name>RemoveTodo</servlet-name>
        <servlet-class>de.vogella.gae.java.todo.ServletRemoveTodo</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>RemoveTodo</servlet-name>
        <url-pattern>/done</url-pattern>
    </servlet-mapping>
    <servlet-mapping>
        <servlet-name>CreateNewTodo</servlet-name>
        <url-pattern>/new</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>Email</servlet-name>
        <servlet-class>de.vogella.gae.java.todo.EmailServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>Email</servlet-name>
        <url-pattern>/_ah/mail/*</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>TodoApplication.jsp</welcome-file>
    </welcome-file-list>


</web-app>

Create the following servlet which will process your email.

package de.vogella.gae.java.todo;

import java.io.IOException;
import java.util.Properties;

import javax.mail.Address;
import javax.mail.MessagingException;
import javax.mail.Multipart;
import javax.mail.Part;
import javax.mail.Session;
import javax.mail.internet.MimeMessage;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.datanucleus.sco.simple.GregorianCalendar;

import com.google.appengine.api.users.User;

import de.vogella.gae.java.todo.dao.Dao;

public class EmailServlet extends HttpServlet {

    private static final long serialVersionUID = 1L;

    public void doPost(HttpServletRequest req, HttpServletResponse resp)
            throws IOException {
        Properties props = new Properties();

        Session email = Session.getDefaultInstance(props, null);

        try {
            MimeMessage message = new MimeMessage(email, req.getInputStream());
            String summary = message.getSubject();
            String description = getText(message);
            Address[] addresses = message.getFrom();
            User user = new User(addresses[0].toString(), "gmail.com");
            Dao.INSTANCE.add(user.getNickname(), summary, description, "",
                    GregorianCalendar.getInstance());

        } catch (Exception e) {
            e.printStackTrace();
        }
    }



    private boolean textIsHtml = false;

    /**
     * Return the primary text content of the message.
     */
    private String getText(Part p) throws
                MessagingException, IOException {
        if (p.isMimeType("text/*")) {
            String s = (String)p.getContent();
            textIsHtml = p.isMimeType("text/html");
            return s;
        }

        if (p.isMimeType("multipart/alternative")) {
            // prefer html text over plain text
            Multipart mp = (Multipart)p.getContent();
            String text = null;
            for (int i = 0; i < mp.getCount(); i++) {
                Part bp = mp.getBodyPart(i);
                if (bp.isMimeType("text/plain")) {
                    if (text == null)
                        text = getText(bp);
                    continue;
                } else if (bp.isMimeType("text/html")) {
                    String s = getText(bp);
                    if (s != null)
                        return s;
                } else {
                    return getText(bp);
                }
            }
            return text;
        } else if (p.isMimeType("multipart/*")) {
            Multipart mp = (Multipart)p.getContent();
            for (int i = 0; i < mp.getCount(); i++) {
                String s = getText(mp.getBodyPart(i));
                if (s != null)
                    return s;
            }
        }

        return null;
    }


}

To test your email functionality start your application and open the admin console on

http://localhost:8888/_ah/admin/"

Select Inbound Mail and maintain some test data. Make sure the To email address match the servlet mapping for the email address.

 Deploy your application. Send an email to
"whatever@applicationid.appspotmail.com". Login to your application.
You should get a new Todo
with the summary of the email header and the
description of the email
body.

8. Cron jobs

You can define cron jobs in your application. Via a cron job on th AppEngine you can access a URL according to a time pattern which is defined similar to the cron jobs on Unix. You define your cron jobs in a file "cron.xml" in the WEB-INF folder of you application.

<?xml version="1.0" encoding="UTF-8"?>
<cronentries>
  <cron>
    <url>/count</url>
    <description>Calls the webpage /count every minute</description>
    <schedule>every 1 minutes</schedule>
  </cron>
</cronentries>

This cron job will call the local website /count every minute.

You can check you cron jobs in the admin console.

cron10
Please note that you should avoid running unnecessary cron jobs as this increases the load of the AppEngine.

9. Logging

You can use standard Java Logging for logging on the App Engine. For example to define a logger in your class EmailServlet use the following.

private static final Logger log = Logger.getLogger(EmailServlet.class.getName());

To log a message use the following.

log.info("Your information log message");
log.warning("Your warning log message");
log.severe("Your severe log message");

You find your logs on the Admin Console. the For further information see Java Logging Tutorial and Logging on the GAE/J.

10. Admin Console

10.1. Overview

The Admin Console provides you with a lot of information about your application. For example you can access the data stored in the datastore or look at the log files of your application.

log10

You can also use standard Java Logging for creating custom logs on the GAE/J. See Java Logging Tutorial and Logging on the GAE/J.

10.2. Extend the Admin Console

You can also extend the admin console with own pages. Create the following entry in "appengine-web.xml".

<admin-console>
        <page name="Static List" url="/static.html" />
</admin-console>

We will just use a static HTML for the example. Create the following file in the WEB-INF folder.

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">

<html>
  <head>
    <meta http-equiv="content-type" content="text/html; charset=UTF-8">
    <title>Integrated into the Admin Console</title>
  </head>

  <body>
    <h1>Hello Admin Console!</h1>

    <table>
      <tr>
        <td colspan="2" style="font-weight:bold;">This could be a dynamic site:</td>
      </tr>
      <tr>
        <td>But it isn't.</td>
      </tr>
    </table>
  </body>
</html>

If you redeploy your application you have another entry in your Admin console.

admin20

11. Links and Literature
