Android - Using drag and drop in your application - Tutorial

Lars Vogel

Version 1.3

21.11.2014

Revision History
Revision 0.1 - 1.3 24.02.2012 - 21.11.2014   Bugfixes and enhancements

Using drag and drop in Android

This tutorial describes how to use drag and drop in Android. It is based on Eclipse 4.4 (Luna), Java 1.7 and Android 5.0.


Table of Contents

1. Android drag and drop
1.1. Using drag and drop in Android
1.2. Allowing a view to be dragged
1.3. Defining drop target
2. Exercise: Drag and drop
2.1. Target of this exercise
2.2. Create project
2.3. Create XML Drawables
2.4. Activity and layout
3. Support this website
3.1. Thank you
3.2. Questions and Discussion
4. Links and Literature
4.1. Source Code
4.2. Android Resources
4.3. vogella Resources

1. Android drag and drop

1.1. Using drag and drop in Android

As of Android 4.0 drag and drop of view onto other views or view groups is supported.

1.2. Allowing a view to be dragged

To use dragging a view you register a OnTouchListener or a LongClickListener on the view which can be dragged.

The startDrag method of the View start a drag operation. In this method you also specify the data which is passed to the drop target via an instance of ClipData.

You also pass to the startDrag method an instance of DragShadowBuilder. This object specifies the picture used for the drag operation. For example you can pass in the view directly, that shows an image of the view during the drag operation.

The setup of this drag operation in a touch listener is demonstrated in the following example.

// Assign the touch listener to your view which you want to move
findViewById(R.id.myimage1).setOnTouchListener(new MyTouchListener());

// This defines your touch listener
private final class MyTouchListener implements OnTouchListener {
  public boolean onTouch(View view, MotionEvent motionEvent) {
    if (motionEvent.getAction() == MotionEvent.ACTION_DOWN) {
      ClipData data = ClipData.newPlainText("", "");
      DragShadowBuilder shadowBuilder = new View.DragShadowBuilder(view);
      view.startDrag(data, shadowBuilder, view, 0);
      view.setVisibility(View.INVISIBLE);
      return true;
    } else {
    return false;
    }
  }
}

1.3. Defining drop target

The views which can be drop targets get an instance of OnDragListener assigned. In this drop listener you receive call backs in case of predefined drag and drop related events.

  • DragEvent.ACTION_DRAG_STARTED

  • DragEvent.ACTION_DRAG_ENTERED

  • DragEvent.ACTION_DRAG_EXITED

  • DragEvent.ACTION_DROP

  • DragEvent.ACTION_DRAG_ENDED

A view with OnDragListener which are used as a drop zone, gets a OnDragListener assigned via the setOnDragListener.

findViewById(R.id.bottomright).setOnDragListener(new MyDragListener());

class MyDragListener implements OnDragListener {
  Drawable enterShape = getResources().getDrawable(R.drawable.shape_droptarget);
  Drawable normalShape = getResources().getDrawable(R.drawable.shape);

  @Override
  public boolean onDrag(View v, DragEvent event) {
    int action = event.getAction();
    switch (event.getAction()) {
    case DragEvent.ACTION_DRAG_STARTED:
    // do nothing
      break;
    case DragEvent.ACTION_DRAG_ENTERED:
      v.setBackgroundDrawable(enterShape);
      break;
    case DragEvent.ACTION_DRAG_EXITED:
      v.setBackgroundDrawable(normalShape);
      break;
    case DragEvent.ACTION_DROP:
      // Dropped, reassign View to ViewGroup
      View view = (View) event.getLocalState();
      ViewGroup owner = (ViewGroup) view.getParent();
      owner.removeView(view);
      LinearLayout container = (LinearLayout) v;
      container.addView(view);
      view.setVisibility(View.VISIBLE);
      break;
    case DragEvent.ACTION_DRAG_ENDED:
      v.setBackgroundDrawable(normalShape);
      default:
      break;
    }
    return true;
  }
}

2. Exercise: Drag and drop

2.1. Target of this exercise

In this exercise you create a several view groups which allow to drag views between them.

2.2. Create project

Create a new Android project called com.vogella.android.draganddrop with an activity called DragActivity.

2.3. Create XML Drawables

In this exercise you are using XML drawables.

In this part you create several XML drawables in the res/drawable folder.

Create the following shape.xml file in this folder.

<?xml version="1.0" encoding="UTF-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle" >

    <stroke
        android:width="2dp"
        android:color="#FFFFFFFF" />

    <gradient
        android:angle="225"
        android:endColor="#DD2ECCFA"
        android:startColor="#DD000000" />

    <corners
        android:bottomLeftRadius="7dp"
        android:bottomRightRadius="7dp"
        android:topLeftRadius="7dp"
        android:topRightRadius="7dp" />

</shape>

Also create the following shape_droptarget.xml file.

<?xml version="1.0" encoding="UTF-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle" >

    <stroke
        android:width="2dp"
        android:color="#FFFF0000" />

    <gradient
        android:angle="225"
        android:endColor="#DD2ECCFA"
        android:startColor="#DD000000" />

    <corners
        android:bottomLeftRadius="7dp"
        android:bottomRightRadius="7dp"
        android:topLeftRadius="7dp"
        android:topRightRadius="7dp" />

</shape>

2.4. Activity and layout

Change the layout of your activity to the following code.

<?xml version="1.0" encoding="utf-8"?>
<GridLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:columnCount="2"
    android:columnWidth="320dp"
    android:orientation="vertical"
    android:rowCount="2"
    android:stretchMode="columnWidth" >

    <LinearLayout
        android:id="@+id/topleft"
        android:layout_width="160dp"
        android:layout_height="160dp"
        android:layout_row="0"
        android:background="@drawable/shape" >

        <ImageView
            android:id="@+id/myimage1"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_launcher" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/topright"
        android:layout_width="160dp"
        android:layout_height="160dp"
        android:background="@drawable/shape" >

        <ImageView
            android:id="@+id/myimage2"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_launcher" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/bottomleft"
        android:layout_width="160dp"
        android:layout_height="160dp"
        android:background="@drawable/shape" >

        <ImageView
            android:id="@+id/myimage3"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_launcher" />
    </LinearLayout>

    <LinearLayout
        android:id="@+id/bottomright"
        android:layout_width="160dp"
        android:layout_height="160dp"
        android:background="@drawable/shape" >

        <ImageView
            android:id="@+id/myimage4"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:src="@drawable/ic_launcher" />
    </LinearLayout>

</GridLayout>

Change your activity class to the following code.

package de.vogella.android.draganddrop;

import android.app.Activity;
import android.content.ClipData;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.DragEvent;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.DragShadowBuilder;
import android.view.View.OnDragListener;
import android.view.View.OnTouchListener;
import android.view.ViewGroup;
import android.widget.LinearLayout;

public class DragActivity extends Activity {

/** Called when the activity is first created. */
@Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); findViewById(R.id.myimage1).setOnTouchListener(new MyTouchListener()); findViewById(R.id.myimage2).setOnTouchListener(new MyTouchListener()); findViewById(R.id.myimage3).setOnTouchListener(new MyTouchListener()); findViewById(R.id.myimage4).setOnTouchListener(new MyTouchListener()); findViewById(R.id.topleft).setOnDragListener(new MyDragListener()); findViewById(R.id.topright).setOnDragListener(new MyDragListener()); findViewById(R.id.bottomleft).setOnDragListener(new MyDragListener()); findViewById(R.id.bottomright).setOnDragListener(new MyDragListener()); } private final class MyTouchListener implements OnTouchListener { public boolean onTouch(View view, MotionEvent motionEvent) { if (motionEvent.getAction() == MotionEvent.ACTION_DOWN) { ClipData data = ClipData.newPlainText("", ""); DragShadowBuilder shadowBuilder = new View.DragShadowBuilder(view); view.startDrag(data, shadowBuilder, view, 0); view.setVisibility(View.INVISIBLE); return true; } else { return false; } } } class MyDragListener implements OnDragListener { Drawable enterShape = getResources().getDrawable(R.drawable.shape_droptarget); Drawable normalShape = getResources().getDrawable(R.drawable.shape); @Override public boolean onDrag(View v, DragEvent event) { int action = event.getAction(); switch (event.getAction()) { case DragEvent.ACTION_DRAG_STARTED: // do nothing break; case DragEvent.ACTION_DRAG_ENTERED: v.setBackgroundDrawable(enterShape); break; case DragEvent.ACTION_DRAG_EXITED: v.setBackgroundDrawable(normalShape); break; case DragEvent.ACTION_DROP: // Dropped, reassign View to ViewGroup View view = (View) event.getLocalState(); ViewGroup owner = (ViewGroup) view.getParent(); owner.removeView(view); LinearLayout container = (LinearLayout) v; container.addView(view); view.setVisibility(View.VISIBLE); break; case DragEvent.ACTION_DRAG_ENDED: v.setBackgroundDrawable(normalShape); default: break; } return true; } } }

If you start this activity you should be able to drag the ImageViews to another container.

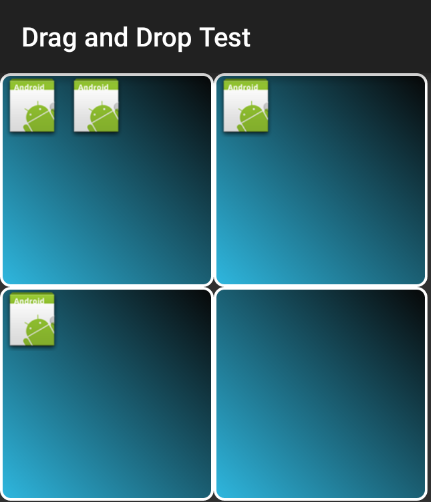

Drag and Drop Screenshot of the Application
