This tutorial contains information about the usage of the Jenkins build server to build Android appplications.

1. How to build your Android application with Jenkins

1.1. Android Jenkins build job prerequisites

Jenkins supports the automatic building and testing of Android applications. To create a build job on Jenkins, you need to have a working build setup. The Android tooling generates automatically a valid Gradle build file, which can be used in Jenkins.

1.2. Installation of the Android SDK

The Android SDk must be available on the server. If you build server has no display server, you need to install the Android SDK from the command line. You also need to configure the location for the Android SKD for Jenkins.

# download the Android SDK via wget
# for the correct URL see http://developer.android.com/sdk/index.html
# and look in the section "SDK Tools Only"
wget <link from the above website>
# example
# wget http://dl.google.com/android/android-sdk_r24.2-linux.tgz
# unpack it
tar zxvf filename

# Add the new directory to your patch
# assumes you exported it to /opt/
# this must be set for the Jenkins user
export ANDROID_HOME="/opt/android-sdk-linux"
export PATH="$ANDROID_HOME/tools:$ANDROID_HOME/platform-tools:$PATH"

// run this as Jenkins user
android update sdk --no-ui

Use the android list targets command to see what ABIs are installed. If no are listed you need to install one, as demonstrated in the following example:

android update sdk --all --filter sys-img-armeabi-v7a-android-23 --no-ui --force

1.3. Jenkins Plug-ins for installation

You need the follwing plug-ins to build Android application with Jenkins:

  • Gradle Plugin

  • Git Plugin - if Git is used for the project sources

  • Android Emulator Plugin - supports starting and unlocking an Android emulator and blocks the build until the emulator has started. Required for running tests.

1.4. Creating a build jobs for Android applications

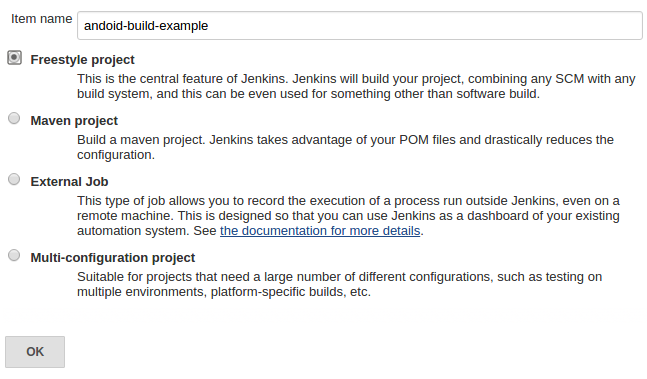

To create an Android build job on Jenkins, select New Job, and enter a job name. Select the Build a free-style software project option.

Create new Jenkins job

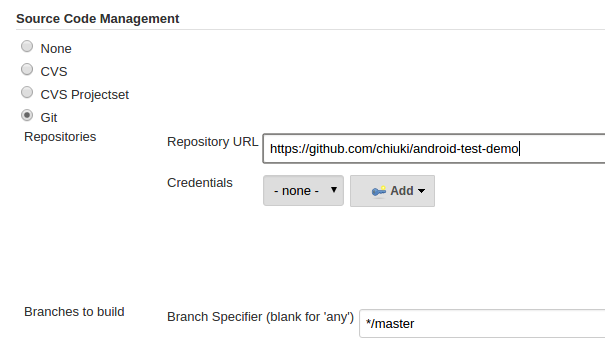

You now configure from where the source should be cloned.

Create new Jenkins job and clone Git repo

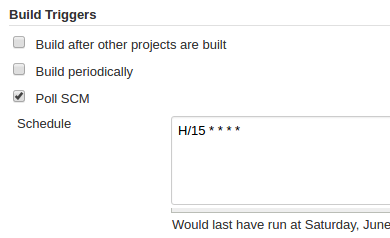

Configure you desired build trigger. In the above screenshot, the job would check the Git repository every 15 mins.

Jenkins Build Trigger

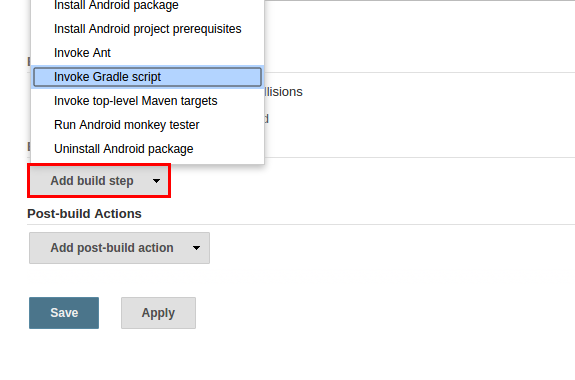

Add a Gradle build step to your Jenkins jobs.

Android emulator settings

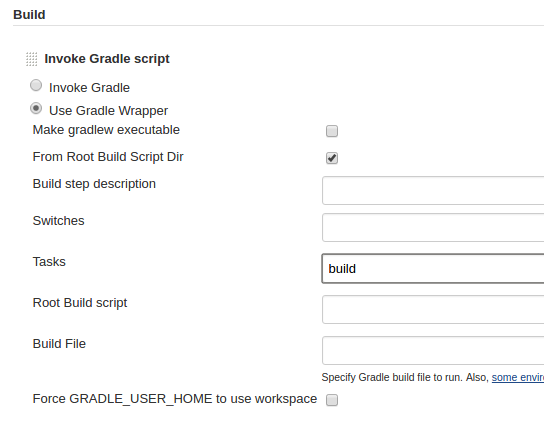

Enter the Gradle build file for Jenkins Android build

That is it, you should be able to run your Android build.

1.5. Running tests on the device

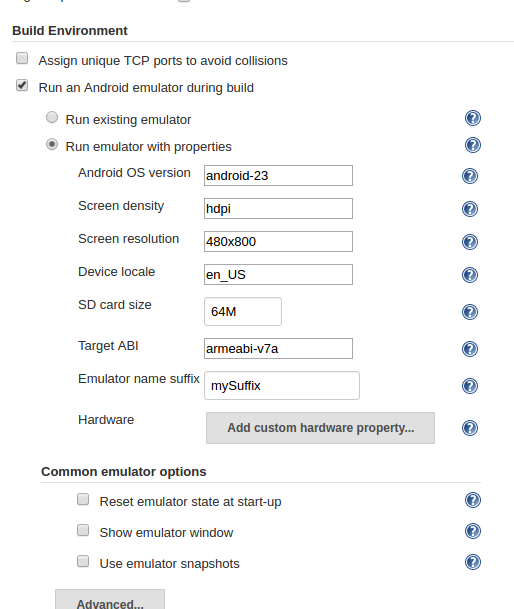

To run your instrumentation tests on your device you also need to configure a virtual device.

Ensure that you do not select the Show emulator window option because your job should not depend on the availability of a display server.

Configure a virtual device

To run your tests and your instrumentation tests use the test connectedAndroidTest target.

1.6. Other useful plug-ins for Android builds

  • Android Emulator Plugin - supports a new job with the Build multi-configuration project option. This option allows you to test multiple emulator configurations at the same time. You can, for example, test different languages, densities, screen resolutions, etc.

Typically you have two Jobs. One for a simple build and test run and a multi-configuration project to test the build on different device configurations.

Another useful plug-in is the Lint plug-in which allows to run your Lint checks via Jenkins. See https://wiki.jenkins-ci.org/display/JENKINS/Android+Lint+Plugin for details.
