Eclipse RCP. This tutorial describes how to develop Eclipse RCP applications with Eclipse 3.x API.

1. Eclipse software components - Plug-ins

An Eclipse application consists of several Eclipse components. A software component in Eclipse is called a plug-in. The Eclipse platform allows the developer to extend Eclipse applications like the Eclipse IDE with additional functionalities via plug-ins.

Eclipse applications use a runtime based on a specification called OSGi. A software component in OSGi is called a bundle. An OSGi bundle is also always an Eclipse plug-in. Both terms can be used interchangeably.

For example, a new plug-in can create new menu entries or toolbar entries.

2. Extending the Eclipse IDE

The Eclipse IDE is basically an Eclipse RCP application to support development activities. Even core functionality of the Eclipse IDE is provided via a plug-in, for example the Java development or the C development tools are contributed as a set of plug-ins. Only if these plug-ins are present the Java or C development capabilities are available.

The Eclipse IDE functionality is heavily based on the concept of extensions and extension points. For example the Java Development Tools provide an extension point to register new code templates for the Java editor.

Via additional plug-ins you can contribute to an existing functionality, for example new menu entries, new toolbar entries or provide completely new functionality. But you can also create completely new programming environments.

3. Eclipse 3.x vs. Eclipse 4

Outdated information. See http://www.vogella.com/tutorials/Eclipse4RCP/article.html - Eclipse 4 Tutorial, for an introduction into the Eclipse RCP programming.

4. What are Extension Points?

Extension-points define interfaces for other plug-ins to contribute functionality (code and non-code).

They are defined in the plugin.xml file, which must be in the root directory of your plug-in project.

Existing extensions (contributions) are collected during the start of an Eclipse application.

5. Main components of an Eclipse RCP application

The minimal required plug-ins to create and run an minimal Eclipse RCP application (with UI) are the two plugins "org.eclipse.core.runtime" and "org.eclipse.ui". Based on these components an Eclipse RCP application must define the following elements:

  • Main program - A RCP main application class implements the interface "IApplication". This class can be viewed as the equivalent to the main method for standard Java application. Eclipse expects that the application class is defined via the extension point "org.eclipse.core.runtime.application".

  • A Perspective - defines the layout of your application. Must be declared via the extension point "org.eclipse.ui.perspective".

  • Workbench Advisor- invisible technical component which controls the appearance of the application (menus, toolbars, perspectives, etc)

The Eclipse application is the equivalent of the Java main() method. Applications are defined via the extension point org.eclipse.core.runtime.applications and must extend IApplication.

6. Approach

If you teach programming you basically have two extreme choices. The first approach is that you explain everything first and then do it. The second choice is that you first do everything and then explain what you have done.

The following description tends towards the second approach.

We will develop a small RCP application, create a product and launch it, before explaining the project structure, the involved classes and what a product or a launch configuration is.

In my experience its easier to understand an explanation, if you have already created an example.

The risk associated with that approach is that if you run into a problem you do not know how to solve it.

Therefore if you have problem starting your product, I suggest to read the chapter about launch configurations and if that does not help, check the "Products and Branding" chapter.

7. Application and Advisor Classes

During the startup of an Eclipse RCP application the Eclipse runtime will evaluate which class is defined via the org.eclipse.core.runtime.application extension point.

This is the equivalent of the main class of standard Java programs. This class is responsible for creating the SWT Display and for starting the event loop for the application.

This class is typically called Application and must implement the interface IApplication.

Display display = PlatformUI.createDisplay();
PlatformUI.createAndRunWorkbench(display, new ApplicationWorkbenchAdvisor());

PlatformUI.createAndRunWorkbench() creates and runs a Workbench. The Workbench represents the graphical user interface of Eclipse. The visual part of the Workbench is represented via the WorkbenchWindow class. A Workbench can have several WorkbenchWindows opened. The inner part of the WorkbenchWindow is represented via the class WorkbenchPage.

The Workbench is configured via a class of type WorkbenchAdvisor. This class defines the initial Perspective and defines the WorkbenchWindowAdvisor class.

WorkbenchWindowAdvisor calls the class ActionBarAdvisor which configures Actions for the Workbench and defines initial attribute for the WorkbenchWindow as initial size, title and visibility of the statusline.

public ActionBarAdvisor createActionBarAdvisor(IActionBarConfigurer configurer) {
        return new ApplicationActionBarAdvisor(configurer);
}

public void preWindowOpen() {
        IWorkbenchWindowConfigurer configurer = getWindowConfigurer();
        configurer.setInitialSize(new Point(400, 300));
        configurer.setShowCoolBar(false);
        configurer.setShowStatusLine(false);
        configurer.setTitle("Todo"); //$NON-NLS-1$
}

For example you could set the initial position of the application via postWindowCreate() method.

// for further info see https://bugs.eclipse.org/bugs/show_bug.cgi?id=84938
@Override
public void postWindowCreate() {
        Shell shell = getWindowConfigurer().getWindow().getShell();
        shell.setLocation(100, 400);
        super.postWindowCreate();
}

The ActionBarAdvisor class is as of Eclipse 3.7 not important any more as the Action framework is replaced by the superior command framework.

Each adviser allow to configure certain behavior of the application, e.g., the WorkbenchAdvisor allows to perform certain actions at startup or shutdown by overriding the preStartUp() and preShutdown() methods.

8. WorkbenchParts and Perspectives

8.1. WorkbenchParts - Views and Editors

As described earlier the WorkbenchWindow and the WorkbenchPage represent the visual and inner part of the graphical user interface.

The WorkbenchPage contains Parts, which can be Views or Editors.

Views are used to display information in an RCP application; they can also be used to change data. Views extend the abstract class ViewPart. Editors extend the abstract EditorPart. Both extend WorkbenchPart.

An editor typically requires that the user explicitly select "save" to apply the changes to the data while a view typically changes the data immediately.

All editors are opened in the same area. Via the perspective you can configure if the editor area is visible or not.

Views and Editors are defined via extension points in the file plugin.xml via the tab "Extensions".

Views are defined via the extension point "org.eclipse.ui.views" and Editors via the extension point "org.eclipse.ui.editors".

Views must implement the createPartControl() and setFocus() methods.

createPartControl() is used to create the UI components of the View.

createPartControl() will get as parameter a Composite which can be used to construct the user interface. This composite has by default a FillLayout layout manager assigned to it. This layout manager assigns the same space to all components equally.

setFocus() must set the focus to a specific UI component.

8.2. Perspective

A Perspective describes a certain configuration of Views and Editors.

A Perspective is defined via "org.eclipse.ui.perspectives". The WorkbenchParts which are part of a Perspective are either defined via a Java class defined in the extension point "org.eclipse.ui.perspectives" or via the "org.eclipse.ui.perspectiveExtensions".

public class Perspective implements IPerspectiveFactory {
        public void createInitialLayout(IPageLayout layout) {
                layout.addView("de.vogella.rcp.intro.first.MyView", IPageLayout.TOP,
                                IPageLayout.RATIO_MAX, IPageLayout.ID_EDITOR_AREA);
        }
}

layout.addView() adds a view to the perspective.

You can also add placeholders for views via the layout.addPlaceholder() method call. This methods accepts wildcards and a View with a matching ID would open in this area. For example if you want to open all views in a specific place you could use the layout.addPlaceholder("*",…​) method call, or

layout.addPlaceholder("view_id",…​.) to open a View with the "view_id" ID in this placeholder.

You can also group view via a IFolderLayout which can be created via layout.createFolder() call and by adding Views to this folder via the addView(id) method on IFolderLayout.

9. Tutorial: Adding Views to your application

9.1. Create a view

The following will explain how to add views to your application. We will continue to use the RCP project "de.vogella.rcp.intro.first".

Add the extension "org.eclipse.ui.views" to your plugin. Select "plugin.xml and the tab "Extentions". Right mouse-click on your new view extension and select New ▸ View. Maintain the id "de.vogella.rcp.intro.view.MyView" and the class "de.vogella.rcp.intro.view.MyView".

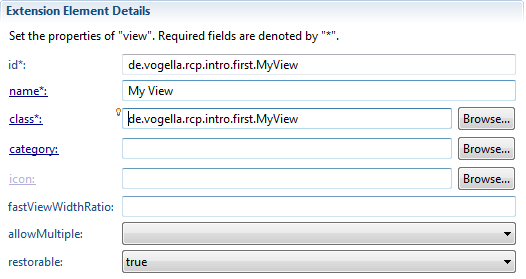

Data for the
Data for the

Create the class "MyView" by clicking on the "class" hyperlink and maintain the following code. Afterwards, your view is ready to be used.

package de.vogella.rcp.intro.first;

import org.eclipse.swt.SWT;
import org.eclipse.swt.widgets.Composite;
import org.eclipse.swt.widgets.Text;
import org.eclipse.ui.part.ViewPart;

public class MyView extends ViewPart {

        @Override
        public void createPartControl(Composite parent) {
                Text text = new Text(parent, SWT.BORDER);
                text.setText("Imagine a fantastic user interface here");
        }

        @Override
        public void setFocus() {
        }
}

9.2. Add the view to your perspective

You have to add the view to your perspective. Add the extension "org.eclipse.ui.perspectiveExtensions" to your plugin.

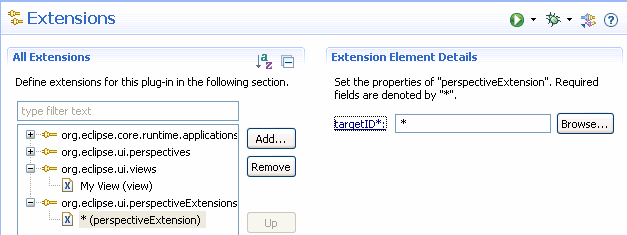

Adding a view to your perspective via the

Right-click "*(perspectiveExtension)" New ▸ View. Maintain your view id de.vogella.rcp.intro.first.MyView. Make the view relative to org.eclipse.ui.editors which is the currently invisible editor area and make the view use all the space by selecting the maximum ratio of 0.95f.

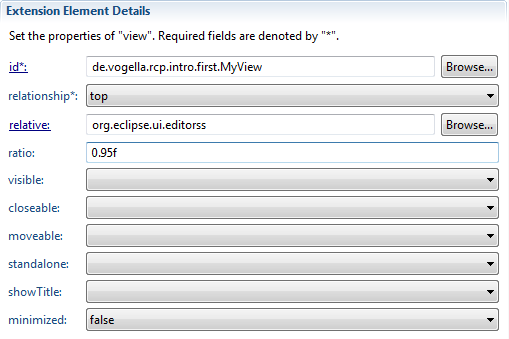

Maintaining the layout data for the view in the `org.eclipse.ui.perspectiveExtensions` extension point

9.3. Result

Run your application to see the result.

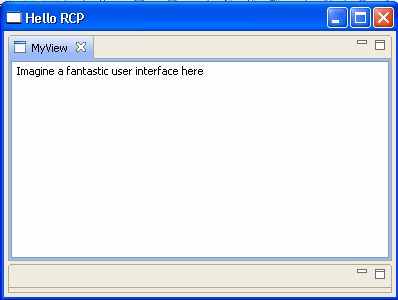

Running application with a new view

9.4. Add view to perspective via code

I personally prefer extension points over code. But instead of using the extension point "org.eclipse.ui.perspectiveExtensions" you could also add the view via code to the perspective. For this modify "Perspective.java" to the following.

package de.vogella.rcp.intro.view;

import org.eclipse.ui.IPageLayout;
import org.eclipse.ui.IPerspectiveFactory;

public class Perspective implements IPerspectiveFactory {

        public void createInitialLayout(IPageLayout layout) {
                layout.addView("de.vogella.rcp.intro.first.MyView", IPageLayout.TOP,
                                IPageLayout.RATIO_MAX, IPageLayout.ID_EDITOR_AREA);
        }
}

10. Tutorial: Adding an Perspectives

Create a new RCP project called "de.vogella.rcp.intro.perspective". Use the "RCP application with a view" as a template. In plugin.xml add a new extension point "org.eclipse.ui.perspectives". Give the perspective with the id "de.vogella.rcp.intro.perspective.perspective" and the name "vogella.com Perspective". Change the class name to "de.vogella.rcp.intro.perspective.Perspective".

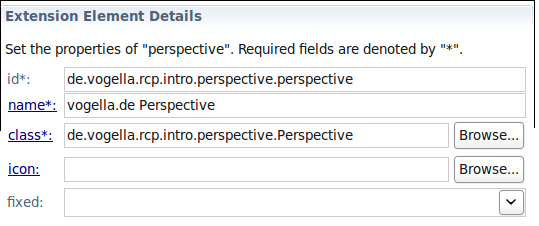

Maintaining the

Click on the "class*" link to create the class. The createInitialLayout() method in your new class is responsible for creating the new perspective. We reuse the existing view in the coding. After this step the perspective is defined but not yet reachable via the application.

package de.vogella.rcp.intro.perspective;

import org.eclipse.ui.IPageLayout;
import org.eclipse.ui.IPerspectiveFactory;

public class Perspective implements IPerspectiveFactory {

        public void createInitialLayout(IPageLayout layout) {
                String editorArea = layout.getEditorArea();
                layout.setEditorAreaVisible(false);
                layout.setFixed(true);
                layout.addStandaloneView(View.ID,  false, IPageLayout.LEFT, 1.0f, editorArea);
        }

}

After defining your perspective you also need to enable your application so that the user can select this perspective.

One alternative is to allow the user to select the perspective via the toolbar / coolbar. You can activate the switch between perspectives the ApplicationWorkbenchWindowAdvisor in method preWindowOpen() with configurer.setShowPerspectiveBar(true);

package de.vogella.rcp.intro.perspective;

import org.eclipse.swt.graphics.Point;
import org.eclipse.ui.application.ActionBarAdvisor;
import org.eclipse.ui.application.IActionBarConfigurer;
import org.eclipse.ui.application.IWorkbenchWindowConfigurer;
import org.eclipse.ui.application.WorkbenchWindowAdvisor;

public class ApplicationWorkbenchWindowAdvisor extends WorkbenchWindowAdvisor {

        public ApplicationWorkbenchWindowAdvisor(
                        IWorkbenchWindowConfigurer configurer) {
                super(configurer);
        }

        public ActionBarAdvisor createActionBarAdvisor(
                        IActionBarConfigurer configurer) {
                return new ApplicationActionBarAdvisor(configurer);
        }

        public void preWindowOpen() {
                IWorkbenchWindowConfigurer configurer = getWindowConfigurer();
                configurer.setInitialSize(new Point(400, 300));
                configurer.setShowStatusLine(false);
                configurer.setTitle("RCP Application");
                configurer.setShowPerspectiveBar(true);
        }
}

You should now be able to select your perspective interactively.

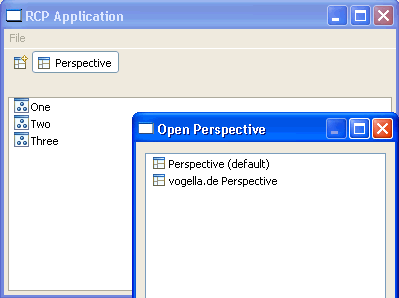

Selecting the perspective in the running application

In addition you could reuse the Eclipse command "org.eclipse.ui.perspectives.showPerspective" which allows to switch between perspectives. See http://www.vogella.com/tutorials/EclipseCommands/article.html - Eclipse Commands.

11. Tutorial: System Tray

The following add an icon for the RCP application to the system tray and adds a menu to this icon. We add the functionality that if the window is minimized then the program is not visible in the taskpane (only via the tray icon).

Taskpane showing the application icon

Create a new project "de.vogella.rcp.intro.traytest". Use the "Hello RCP" as a template. Open the class "ApplicationWorkbenchWindowAdvisor" and maintain the following code.

package de.vogella.rcp.intro.traytest;

import org.eclipse.swt.SWT;
import org.eclipse.swt.events.MenuDetectEvent;
import org.eclipse.swt.events.MenuDetectListener;
import org.eclipse.swt.events.SelectionAdapter;
import org.eclipse.swt.events.SelectionEvent;
import org.eclipse.swt.events.ShellAdapter;
import org.eclipse.swt.events.ShellEvent;
import org.eclipse.swt.graphics.Image;
import org.eclipse.swt.graphics.Point;
import org.eclipse.swt.widgets.Menu;
import org.eclipse.swt.widgets.MenuItem;
import org.eclipse.swt.widgets.Shell;
import org.eclipse.swt.widgets.Tray;
import org.eclipse.swt.widgets.TrayItem;
import org.eclipse.ui.IWorkbenchWindow;
import org.eclipse.ui.application.ActionBarAdvisor;
import org.eclipse.ui.application.IActionBarConfigurer;
import org.eclipse.ui.application.IWorkbenchWindowConfigurer;
import org.eclipse.ui.application.WorkbenchWindowAdvisor;

public class ApplicationWorkbenchWindowAdvisor extends WorkbenchWindowAdvisor {

        private IWorkbenchWindow window;
        private TrayItem trayItem;
        private Image trayImage;

        public ApplicationWorkbenchWindowAdvisor(
                        IWorkbenchWindowConfigurer configurer) {
                super(configurer);
        }

        public ActionBarAdvisor createActionBarAdvisor(
                        IActionBarConfigurer configurer) {
                return new ApplicationActionBarAdvisor(configurer);
        }

        public void preWindowOpen() {
                IWorkbenchWindowConfigurer configurer = getWindowConfigurer();
                configurer.setInitialSize(new Point(400, 300));
                configurer.setShowCoolBar(false);
                configurer.setShowStatusLine(false);
                configurer.setTitle("Hello RCP"); //$NON-NLS-1$
        }

        // As of here is the new stuff
        @Override
        public void postWindowOpen() {
                super.postWindowOpen();
                window = getWindowConfigurer().getWindow();
                trayItem = initTaskItem(window);
                // Some OS might not support tray items
                if (trayItem != null) {
                        minimizeBehavior();
                        // create exit and about action on the icon
                        hookPopupMenu();
                }
        }

        // add a listener to the shell

        private void minimizeBehavior() {
                window.getShell().addShellListener(new ShellAdapter() {
                        // If the window is minimized hide the window
                        public void shellIconified(ShellEvent e) {
                                window.getShell().setVisible(false);
                        }
                });
                // If user double-clicks on the tray icons the application will be
                // visible again
                trayItem.addSelectionListener(new SelectionAdapter() {
                        @Override
                        public void widgetSelected(SelectionEvent e) {
                                Shell shell = window.getShell();
                                if (!shell.isVisible()) {
                                        window.getShell().setMinimized(false);
                                        shell.setVisible(true);
                                }
                        }
                });
        }

        // We hook up on menu entry which allows to close the application
        private void hookPopupMenu() {
                trayItem.addMenuDetectListener(new MenuDetectListener() {

                        @Override
                        public void menuDetected(MenuDetectEvent e) {
                                Menu menu = new Menu(window.getShell(), SWT.POP_UP);
                                // creates a new menu item that terminates the program
                                MenuItem exit = new MenuItem(menu, SWT.NONE);
                                exit.setText("Goodbye!");
                                exit.addSelectionListener(new SelectionAdapter() {
                                        @Override
                                        public void widgetSelected(SelectionEvent e) {
                                                window.getWorkbench().close();
                                        }
                                });
                                // make the menu visible
                                menu.setVisible(true);
                        }
                });
        }

        // This methods create the tray item and return a reference
        private TrayItem initTaskItem(IWorkbenchWindow window) {
                final Tray tray = window.getShell().getDisplay().getSystemTray();
                TrayItem trayItem = new TrayItem(tray, SWT.NONE);
                trayImage = Activator.getImageDescriptor("/icons/alt_about.gif")
                                .createImage();
                trayItem.setImage(trayImage);
                trayItem.setToolTipText("TrayItem");
                return trayItem;

        }

        // clean-up after ourself
        @Override
        public void dispose() {
                if (trayImage != null) {
                        trayImage.dispose();
                }
                if (trayItem != null) {
                        trayItem.dispose();
                }
        }

}

Run your application and see that you have a system tray icon. Test the menu and the minimized behavior. If the application is minimized it should not be visible in the taskbar but only in the system tray.

Showing the application icon in the taskpane

12. WorkbenchAPI

TointeractwiththeWorkbenchyouhaveaccesstotheWorkbench API.Forexampleyoucanaccesstheactiveeditororviewandopenor closeViewsandEditors.

MostAPIcallsaredoneviatheWorkbenchPage. AcommandhandlercangetaccesstotheWorkbenchPagevia:

IWorkbenchPage page = HandlerUtil.getActiveWorkbenchWindow(event).getActivePage();

AviewprovidesaccesstotheWorkbenchandtheWorkbenchWindow viathegetViewSite()method.Aneditorprovidesthesameaccessvia getEditorSite().

IWorkbenchPage page = getViewSite().getPage();
IWorkbenchPage page = getEditorSite().getPage();

YoucouldalsogettheWorkbenchpageoverthePlatformUI Singleton.

IWorkbenchPage page = PlatformUI.getWorkbench().getActiveWorkbenchWindow().getActivePage()

OnceyouhaveaccesstothePageyoucancallitsAPI.The followingdemonstrateshowtofirstcloseallviewsintherunning applicationandhowtoopenaViewwithaspecificID.

IViewReference[] views = page.getViewReferences();
        for (IViewReference view : views) {
                page.hideView(view);
        }
        try {
                page.showView(View.ID);
        } catch (PartInitException e) {
                e.printStackTrace();
        }
return null;

Thefollowingshowshowtosaveaneditorandhowtocloseit.

IEditorPart editorPart = page.getActiveEditor();
    if (editorPart != null) {
              // save the editor without confirmation
        page.saveEditor(editorPart, false);
        // Close the editor and save before saving
        page.closeEditor(editorPart, true);
    }

YoucanalsoaddaPartListenertothepageandlistenfor changeinViewandEditors.Hereisanexamplehowtoaddsucha listenerinApplicationWorkbenchWindowAdvisor.

@Override
        public void postWindowOpen() {
                super.postWindowOpen();
                IWorkbenchPage page = PlatformUI.getWorkbench()
                                .getActiveWorkbenchWindow().getActivePage();

                // Register a part listener for a certain View / Part

                page.addPartListener(new IPartListener2() {
                        @Override
                        public void partVisible(IWorkbenchPartReference partRef) {
                                System.out.println("Part visible: " + partRef.getId());
                        }

                        @Override
                        public void partOpened(IWorkbenchPartReference partRef) {
                                System.out.println("Part opened: " + partRef.getId());
                        }

                        @Override
                        public void partInputChanged(IWorkbenchPartReference partRef) {
                        }

                        @Override
                        public void partHidden(IWorkbenchPartReference partRef) {
                                System.out.println("Part hidden: " + partRef.getId());
                        }

                        @Override
                        public void partDeactivated(IWorkbenchPartReference partRef) {
                                System.out.println("Part deactivated:" + partRef.getId());
                        }

                        @Override
                        public void partClosed(IWorkbenchPartReference partRef) {
                                System.out.println("Part closed:" + partRef.getId());
                        }

                        @Override
                        public void partBroughtToTop(IWorkbenchPartReference partRef) {
                                System.out.println("Part top:" + partRef.getId());
                        }

                        @Override
                        public void partActivated(IWorkbenchPartReference partRef) {
                                System.out.println("Part activated: " + partRef.getId());
                        }
                });
        }

13. Tips and Tricks

13.1. Load an image from your plugin

To load an image from your plug-in your use the AbstractUIPlugin.

AbstractUIPlugin.imageDescriptorFromPlugin(YourPluginId,/icons/your.gif).createImage();

Alternatively you could load the framework directly.

Bundle bundle = FrameworkUtil.getBundle(this.getClass());
URL url = FileLocator.find(bundle,
        new Path("icons/alt_window_32.gif"), null);
Image image = ImageDescriptor.createFromURL(url).createImage();

13.2. Save users layout

To remember the user’s layout and window size for the next time you start your application, add configurer.setSaveAndRestore(true); to the initialize method of ApplicationWorkbenchAdvisor.

package addactiontoview;

import org.eclipse.ui.application.IWorkbenchConfigurer;
import org.eclipse.ui.application.IWorkbenchWindowConfigurer;
import org.eclipse.ui.application.WorkbenchAdvisor;
import org.eclipse.ui.application.WorkbenchWindowAdvisor;

public class ApplicationWorkbenchAdvisor extends WorkbenchAdvisor {

        private static final String PERSPECTIVE_ID = "AddActiontoView.perspective";

        public WorkbenchWindowAdvisor createWorkbenchWindowAdvisor(
                        IWorkbenchWindowConfigurer configurer) {
                return new ApplicationWorkbenchWindowAdvisor(configurer);
        }

        public String getInitialWindowPerspectiveId() {
                return PERSPECTIVE_ID;
        }

        @Override
        public void initialize(IWorkbenchConfigurer configurer) {
                super.initialize(configurer);
                configurer.setSaveAndRestore(true);
        }

}

Eclipse has a pre-defined command to reset the perspective. See the Eclipse Commands tutorial.

13.3. Accessing the status line

The status line in an RCP application can be used to give the user some information about the running application. The shared message area can be used by all parts of the application to write messages to this area. The whole RCP application has access to the information in the shared status line therefore the information in the shared status line might be overwritten.

To show the status line in your RCP application use the "ApplicationWorkbenchWindowAdvisor" and set the status line visible in the method preWindowOpen().

public class ApplicationWorkbenchWindowAdvisor extends WorkbenchWindowAdvisor {
    //...
    @Override
    public void preWindowOpen() {
            // ....
        configurer.setShowStatusLine(false);
    }
}

The following writes a text to the status line from a view.

IStatusLineManager manager = getViewSite().getActionBars().getStatusLineManager();
manager.setMessage("Information for the status line");

From an editor you can access the status line via the following:

IEditorPart.getEditorSite().getActionBars();

13.4. Finding unused dependencies

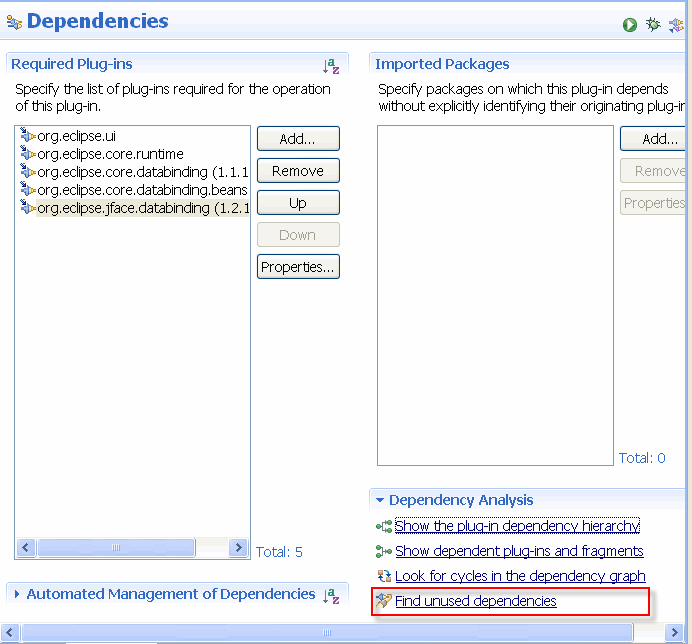

In the file plugin.xml (tab dependencies) you define on which plugins your plug-in depends. Of course you should only define the required plugins here. You can check if you have any dependency maintained which is actually not used, by selecting Dependency Analysis → Find unused dependencies.

How to remove unused dependencies

13.5. Multi-User settings

Eclipse RCP applications save configuration files in the folder ".metadata". In the standard settings the Eclipse RCP installation directory will be used for this folder. If several users are using the same installation folder, then you should supply the parameter "-data" to specify an alternative location. If you specify the value "@user.home/applicationname" the configuration will be saved in a user specific folder.

14. Recipes

This chapter contains a few recipes for typical development tasks and some additional background material.

14.1. Reading resources from plug-ins

You can access files in your plug-in via two different approaches:

  • via the FileLocator class or

  • via an Eclipse specific URL.

Both approaches require that your plug-in defines a dependency to the org.eclipse.core.runtime plug-in.

Both approaches return a URL which can be used to get an InputStream.

The following code shows an example with FileLocator.

Bundle bundle = FrameworkUtil.getBundle(this.getClass());
URL url = FileLocator.find(bundle,
    new Path("path_to_file"), null);

The following code shows an example for the usage of the Eclipse specific URL.

URL url = null;

try {

  url = new URL("platform:/plugin/"
    + "your_bundle-symbolicname"
    + "path_to_file");

    } catch (MalformedURLException e1) {
      e1.printStackTrace();
}

Using the URL to create an InputStream and to read the file is demonstrated in the next code example.

public static String readTextFile(URL url) throws IOException {
    StringBuilder output = new StringBuilder();
    String lineSeperator = System.lineSeparator();

    try ( InputStream in = url.openConnection().getInputStream();
          BufferedReader br = new BufferedReader(new InputStreamReader(in)) ) {

        String inputLine;

        while ((inputLine = br.readLine()) != null ) {
            output.append(inputLine).append(lineSeperator);
        }

      if (output.length()>0) {
        // remove last line separator
        output.setLength(output.length() - lineSeperator.length());
      }
     }

    return output.toString();
}

14.2. Loading images from a plug-in

The ImageDescriptor class has a static method to create an ImageDescriptor instance directly from a URL. ImageDescriptor is a light-weight representation of an Image. Via the createImage() you can create the Image instance.

@Override
public Image loadImage(Class<Object> clazz, String path) {
    Bundle bundle = FrameworkUtil.getBundle(this.getClass());
    URL url = FileLocator.find(bundle,
        new Path("icons/alt_window_32.gif"), null);

    ImageDescriptor imageDescr = ImageDescriptor.createFromURL(url);
    return imageDescr.createImage();
}

15. About this website

15.1. vogella GmbH training and consulting support

TRAINING SERVICE & SUPPORT

The vogella company provides comprehensive training and education services from experts in the areas of Eclipse RCP, Android, Git, Java, Gradle and Spring. We offer both public and inhouse training. Whichever course you decide to take, you are guaranteed to experience what many before you refer to as “The best IT class I have ever attended”.

The vogella company offers expert consulting services, development support and coaching. Our customers range from Fortune 100 corporations to individual developers.

Copyright © 2012-2016 vogella GmbH. Free use of the software examples is granted under the terms of the EPL License. This tutorial is published under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Germany license.

See Licence.
