Android application testing with the Android test framework - Tutorial

Lars Vogel

Version 1.8

20.10.2014

Android Testing

This tutorial describes how to test Android applications with different Android testing frameworks.


Table of Contents

1. Android automated testing
1.1. Android test strategy
1.2. How to test Android applications
1.3. Unit tests vs. integration tests on Android
1.4. Android and JUnit 3
1.5. What to test on Android applications
1.6. Testing preconditions
1.7. User interface tests
1.8. Running tests on a server without display
2. Which tests require an Android system to run?
2.1. Testing standard Java classes
2.2. Testing Java classes which use the Android API
3. Android test projects and running tests
3.1. Android test projects
3.2. Creating a test project with ADT
3.3. Running the Android test
4. Mocking objects
5. Mocking the context
6. Exercise: Writing a stub for mocking file access
6.1. Create Android application
6.2. Create test project and test
6.3. Conclusion
7. Application testing
8. Service testing
9. Content provider testing
10. Loader testing
11. Test hooks into the Android framework
11.1. Instrumentation
11.2. How the Android system executes tests
12. Activity testing
12.1. Life cycle of activities and instrumentation
12.2. Unit tests for activities
12.3. Integration tests for activities
12.4. Testing the initial state
12.5. State management tests
13. Exercise: unit test for an activity
13.1. Create project which is tested
13.2. Create test project and class
13.3. Write tests
13.4. Validate
14. Exercise: functional test for activities
14.1. Write functional test for activities
14.2. Write functional test for activities
15. More on Android testing
15.1. Android additional assertion
15.2. Android test groups
15.3. Flaky tests
16. Exercise: Run tests via Apache Ant
17. Testing asynchronous processing
18. User interface testing
18.1. Cross-component user interface testing
18.2. uiautomator
18.3. uiautomatorviewer
19. Monkey
20. monkeyrunner
20.1. Testing with monkeyrunner
20.2. monkeyrunner example
21. Common Android testing requires and solution approaches
21.1. Common logging on a server
21.2. Triggering system changes via tests
22. Espresso
23. Other Open Source testing frameworks
24. Support this website
24.1. Thank you
24.2. Questions and Discussion
25. Links and Literature
25.1. Source Code
25.2. Android Resources
25.3. vogella Resources

1. Android automated testing

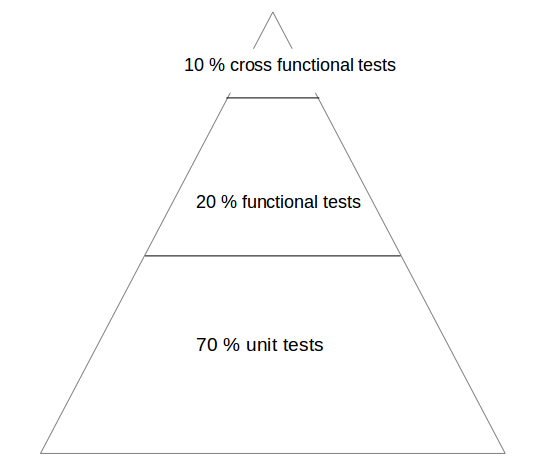

1.1. Android test strategy

Automated testing of Android applications is especially important because of the huge variety of available devices. As it is not possible to test Android application on all possible device configurations, it is common practice to run Android test on typical device configurations.

Having a reasonable test coverage for your Android application helps you to enhance and maintain the Android application.

1.2. How to test Android applications

Android testing is based on JUnit. Testing for Android can be classified into tests which require only the JVM and tests which require the Android system. Which tests require to run on an Android system is explained in Section 2.2, “Testing Java classes which use the Android API”.

Android testing categories

If possible, you should prefer to run your unit tests directly on the JVM as the test execution is much faster compared to the time required to deploy and run the test on an Android device.

Note

The application which is tested is typically called the application under test.

1.3. Unit tests vs. integration tests on Android

A unit test tests only the functionality of a certain component.

Let's, for example, assume a button in an Android activity is used to start another activity. A unit test would determine if the corresponding intent was issued, not if the second activity was started.

An integration test would also check if the activity was correctly started.

Android provides different classes for unit and integration tests.

1.4. Android and JUnit 3

Currently the Android testing API is based on JUnit 3 and not JUnit 4.

Note

Google is working on an update of their testing framework which should separate the testing framework from the Android application framework. During this update they also plan to update the testing framework to JUnit4.

JUnit 3 requires that your test classes inherit from the JUnit 3 junit.framework.TestCase class.

In JUnit 3 test methods must start with the test prefix. The setup method must be called setUp() and the final clean up method must be called tearDown().

1.5. What to test on Android applications

The following tables lists the important areas you should test in your Android applications.

Table 1. Areas to test

Test area Description
Activity life cycle events You should test if you activity handles the Android life cycle events correctly. You should also test if the configuration change events are handled well and if instance state of your user interface components is restored.
File system and database operations Write and read access from and to the file system should be tested including the handling of databases.
Different device configurations You should also test if your application behaves well on different device configurations.


1.6. Testing preconditions

It is good practice in Android testing to have one method called testPreconditions() which tests the pre-conditions for all other tests. If this method fails, you know immediately that the assumptions for the other tests have been violated.

1.7. User interface tests

Android allows that only the main thread modifies the user interface. If a tests should run in the main thread you can annotate him with the @UIThreadTest annotation. These tests cannot be used to control the life cycle of components as they are executed in the same thread on the application under tests. If you have such tests and need to modify the user interface you have to use the Activity.runOnUiThread(Runnable) method.

1.8. Running tests on a server without display

To run tests without a display (headless), specify the adb -no-window parameter.

2. Which tests require an Android system to run?

2.1. Testing standard Java classes

If your classes do not call the Android API, you can use the JUnit test framework (or any other Java testing framework) without any restrictions.

The advantages of the method is that you can use any Java unit testing framework and utility as well as that the execution speed of the unit test is very fast compared to tests which require the Android system.

2.2. Testing Java classes which use the Android API

If you want to test code which use the Android API, you need to run these tests on an Android device. Unfortunately, this makes the execution of tests take longer.

This is because android.jar JAR file does not contain the Android framework code, but only stubs for the type signatures, methods, types, etc. The android.jar JAR file is only used for the Java compiler before deployment on an Android device. It is not bundled with your application. Once your application is deployed on the device, it will use the android.jar JAR file on the Android device. Calling methods from the android.jar JAR file throw a new RuntimeException("Stub!").

This makes it impossible to test the Android framework classes directly on the JVM without additional libraries.

3. Android test projects and running tests

3.1. Android test projects

The preferred way of organizing tests is to keep them in separate Android test projects or source folders. The ADT plug-in for Eclipse emphasizes the usage of separate projects.

Instead of Android components, an Android test application contains one or more test classes.

The project under test must be added as dependency to the test project. The AndroidManifest.xml file must also specify that the test project uses the android.test.runner library and specifies the test runner for the unit test.

A test project also specifies the package of the application to test in the AndroidManifest.xml file under the android:targetPackage attribute. The following listing shows an example AndroidManifest.xml for a test project.

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
      package="de.vogella.android.test.target.test"
      android:versionCode="1"
      android:versionName="1.0">
    <uses-sdk android:minSdkVersion="8" />
    <instrumentation
        android:targetPackage="de.vogella.android.test.target"
        android:name="android.test.InstrumentationTestRunner" />
    <application android:icon="@drawable/icon" android:label="@string/app_name">

    <uses-library android:name="android.test.runner" />
    </application>
</manifest>

3.2. Creating a test project with ADT

The ADT tooling provide support for the creation of Android test projects via a project creation wizard. This wizard can be reached via the FileNewOther...AndroidAndroid Test Project menu path.

Note

It is good practice to use the name of the project under test and add Test or to add the .test suffix to it. This description uses the .test notation.

The wizard creates the required dependencies and entries in the AndroidManifest.xml file automatically.

3.3. Running the Android test

To start an test from A, right-click on the test class and select Run AsAndroid JUnit Test.

4. Mocking objects

Android provides mock classes for the Android framework in the android.test and android.test.mock packages. These mock classes allow you to isolate tests from a running system by stubbing out or overriding normal operations.

The following lists the most important mock objects which can be used for Android testing.

  • MockApplication

  • MockContext

  • MockResources

  • MockContentProvider

  • MockContentResolver

  • MockPackageManager

All methods on these mock objects throws exceptions. If requried you can extend these mocks and override the required methods.

5. Mocking the context

You can use MockContext as Context.

The RenamingDelegatingContext class delegates calls to a given context and supports database and file operations by adding a prefix to all file names. This way you can test your components without affecting the database of the file system on your Android device.

6. Exercise: Writing a stub for mocking file access

6.1. Create Android application

Create a new Android application called com.vogella.android.test.fileaccess. Add the following class to this project.

public class Util {
  public static void writeConfiguration(Context ctx) {
    BufferedWriter writer = null;
    try {
      FileOutputStream openFileOutput = ctx.openFileOutput("config.txt", Context.MODE_PRIVATE);
      openFileOutput.write("This is a test1.".getBytes());
      openFileOutput.write("This is a test2.".getBytes());
    } catch (Exception e) {
      throw new RuntimeException(e);
    } finally {
      if (writer != null) {
        try {
          writer.close();
        } catch (IOException e) {
          e.printStackTrace();
        }

      }
    }
  }
}

Note

It is not required to use this class in your Android application as we are going to unit test it in isolation.

6.2. Create test project and test

In this part of the exercise you write a test for a class which writes to the Android file system using the Android mock framework.

Write your custom FileOutputStream test stub which extends FileOutputStream. In its write() function it should remembers how often this method was called. It does not need to write anything in this method.

public class StubOutputStream extends FileOutputStream {

  public StubOutputStream() throws FileNotFoundException {
    super(FileDescriptor.out);
  }

  // count number of calls, don't bother to really write something
  @Override
  public void write(byte[] buffer) throws IOException {
    fileWrites++;
  }

}

Write your custom MockContext and override the openFileOutput() method.

// this methods belong into your class which extends TestCase
MockContext context = new MockContext() {
    public java.io.FileOutputStream openFileOutput(String name, int mode)
        throws java.io.FileNotFoundException {
      return new StubOutputStream();
    };
};

Note

Even though the Android system uses the term Mock, according to the general test literature this class is actually a stub.

Use your mocks to write a test and validate that the write() method is called twice.

public void testWriteConfigurationShouldAccessFileSystemTwice() {
  assertEquals("No file writes yet", fileWrites, 0);
  Util.writeConfiguration(context);
  assertEquals("Failed to write twice", 2, fileWrites);
}

6.3. Conclusion

Writing stubs for the default Android Mocking framework unfortunately requires a lot of code to write. If possible you should prefer to use mocking framework like Mockito.

7. Application testing

The application class contains the logic, data and settings which are relevant for the whole application. Therefore you should test this object, to ensure it works correctly.

To test an Android application object you use the ApplicationTestCase class.

Note

The test runner of of Android tests (InstrumentationTestRunner) creates automatically an instance of application during its initialization phase. If you do asynchronous processing in your onCreate method you should consider that.

8. Service testing

To test a service you use the ServiceTestCase class. It provides the startService() and bindService() methods to interact with the service. The bindService() immediately returns an IBinder object without callback. You also only need to provide an intent as input.

Testing asynchronous processing in services is a challenge as the duration of this processing may vary.

It is good practice to test if the service handles multiple calls from startService() correctly. Only the first call of startService() triggers the onCreate() of the service, but all calls trigger a call to onStartCommand() of the service.

9. Content provider testing

To test a content provider, you use the ProviderTestCase2 class. ProviderTestCase2 automatically instantiates the provider under test and inserts an IsolatedContext object which is isolated from the Android system, but still allows file and database access.

The usage of the IsolatedContext object ensures that your provider test does not affect the real device.

ProviderTestCase2 also provides access to a MockContentResolver via the getMockCOnktentResolver() method.

You should test all operations of the provider and also what happens if the provider is called with an invalid URI or with an invalid projection.

10. Loader testing

To test a loader, you use the LoaderTestCase class.

11. Test hooks into the Android framework

11.1. Instrumentation

The Android testing API provides hooks into the Android component and application life cycle. These hooks are called the instrumentation API and allow your tests to control the life cycle and user interaction events.

Under normal circumstances your application can only react to the life cycle and user interaction events. For example if Android creates your activity the onCreate() method is called on your activity. Or the user presses a button or a key and your corresponding code is called. Via instrumentation you can control these events via your tests.

Only an instrumentation-based test class allows you to send key events (or touch events) to the application under test.

For example, your test can call the getActivity() method which starts an activity and returns the activity under test. Afterwards, you can call the finish() method, followed by a getActivity() method call again and you can test if the application restored its state correctly.

The Android instrumentation API allows you to run the test project and the normal Android project in the same process so that the test project can call methods of the Android project directly.

11.2. How the Android system executes tests

The InstrumentationTestRunner is the base test runner for Android tests. This test runner starts and loads the test methods. Via the instrumentation API it communicates with the Android system. If you start a test for an Android application, the Android system kills any process of the application under test and then loads a new instance. It does not start the application, this is the responsibility of the test methods. The test method controls the life cycle of the components of the application.

The test runner also calls the onCreate() method of the application and activity under test during its initialization.

12. Activity testing

12.1. Life cycle of activities and instrumentation

As you use instrumentation to test activities, its life cycle methods are not called automatically, only its onCreate() method is called if you call the startActivity() method. You can call the other methods directly via the getInstrumentation().callActivityOn* helper methods.

12.2. Unit tests for activities

To test an activity in isolation, you can use the ActivityUnitTestCase class.

This class allows you to check the layout of the activity and to check if intents are triggered as planned. The intent is not sent to the Android system, but you can use the getStartedActivityIntent() method to access a potential intent and validate its data.

ActivityUnitTestCase starts the activity in an IsolatedContext, i.e., mainly isolated from the Android system.

ActivityUnitTestCase can be used to test layouts and isolated methods in the activity .

As this test runs in an IsolatedContext, the test must start the activity , i.e., it is not auto-started by the Android system.

Intent intent = new Intent(getInstrumentation().getTargetContext(),
        MainActivity.class);
startActivity(intent, null, null);

// after this call you can get the
// Activity with getActivity()

12.3. Integration tests for activities

Functional tests for an activity can be written with the ActivityInstrumentationTestCase2 class. This test uses the full Android system infrastructure and allows you to interact with different components. The communication with the Android infrastructure is done via the Instrumentation class which can be accessed via the getInstrumentation() method. This class allows you to send keyboard and click events.

Warning

If you use this test case, the real infrastructure of Android is used. A call to getApplication() returns the same application instance across tests. If that is not desired you need to manually reset application state before a test.

If you prefer to set values directly, you need to use the runOnUiThread() of the activity. If all statements in your method interact with the UI thread, you can also use the @UiThreadTest annotation on the method. In this case you are not allowed to use methods which do not run in the main UI thread.

A test based on ActivityInstrumentationTestCase2 starts the activity in the standard Android context, similar as if a user would start the application.

If you want to send key events via your test, you have to turn off the touch mode in the emulator via setActivityInitialTouchMode(false) in your setup() method of the test.

Use Instrumentation.invokeMenuActionSync(context, MENU_ID,0) to trigger an action in the menu.

12.4. Testing the initial state

It is good practice to test the initial state of the application before the main activity start to be sure that the test conditions for the activity are fulfilled.

12.5. State management tests

You should write tests which verify that the state of an activity remains even if it is paused or terminated by the Android system.

The ActivityInstrumentationTestCase2 class uses the Instrumentation class, which allows you to call the life cycle hooks of the activities directly. For example you can call the onPause() and onDestroy() method, followed by an onCreate() to validate that the state

13. Exercise: unit test for an activity

13.1. Create project which is tested

Create a new Android project called com.vogella.android.test.simpleactivity with the activity called MainActivity.

Add a second activity called SecondActivity to your project. This activity should use a layout with at least one TextView. The id of the TextView should be "resultText" and its text should be set to "Started".

Add an EditText field to the layout of the MainActivity class.

Add a button to the layout used by MainActivity. If this button is clicked, the second activity should be started.

Put the text EditText field as extra into the intent using "text" as key. Also put the "http://www.vogella.com" String as extra into the intent and use the key "URL" for this.

Here is some example code for the MainActivity.

package com.vogella.android.test.simpleactivity;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;

public class MainActivity extends Activity {

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
  }

  public void onClick(View view) {
    Intent intent = new Intent(this, SecondActivity.class);
    intent.putExtra("URL", "http://www.vogella.com");
    startActivity(intent);
  }
}

13.2. Create test project and class

Create a new test project called com.vogella.android.test.simpleactivity.test. Select com.vogella.android.test.simpleactivity as the project to test.

Create test project wizard

Create test project wizard

Create a test class called MainActivityUnitTest based on the superclass android.test.ActivityUnitTestCase. This class is used for the tests.

Initialize the activity in the setup method. The class should look like the following template.

package com.vogella.android.test.simpleactivity.test;

import android.content.Intent;
import android.test.TouchUtils;
import android.test.suitebuilder.annotation.SmallTest;
import android.widget.Button;

import com.vogella.android.test.simpleactivity.MainActivity;

public class MainActivityUnitTest extends
    android.test.ActivityUnitTestCase<MainActivity> {

  private int buttonId;
  private MainActivity activity;

  public MainActivityUnitTest() {
    super(MainActivity.class);
  }

  @Override
  protected void setUp() throws Exception {
    super.setUp();
    Intent intent = new Intent(getInstrumentation().getTargetContext(),
        MainActivity.class);
    startActivity(intent, null, null);
    activity = getActivity();
  }

}

13.3. Write tests

Write a unit test for the activity which tests the following:

  • Check that the layout of the MainActivity contains a button with the R.id.button1 ID

  • Ensure that the text on the button is "Start"

  • Ensure that if the getActivity.onClick() method is called, that the correct intent is triggered via the getStartedActivityIntent() method

13.4. Validate

Your test code should look similar to the following example code.

package com.vogella.android.test.simpleactivity.test;

import android.content.Intent;
import android.test.TouchUtils;
import android.test.suitebuilder.annotation.SmallTest;
import android.widget.Button;

import com.vogella.android.test.simpleactivity.MainActivity;

public class MainActivityUnitTest extends
    android.test.ActivityUnitTestCase<MainActivity> {

  private int buttonId;
  private MainActivity activity;

  public MainActivityUnitTest() {
    super(MainActivity.class);
  }
  @Override
  protected void setUp() throws Exception {
    super.setUp();
    Intent intent = new Intent(getInstrumentation().getTargetContext(),
        MainActivity.class);
    startActivity(intent, null, null);
    activity = getActivity();
  }

  public void testLayout() {
    buttonId = com.vogella.android.test.simpleactivity.R.id.button1;
    assertNotNull(activity.findViewById(buttonId));
    Button view = (Button) activity.findViewById(buttonId);
    assertEquals("Incorrect label of the button", "Start", view.getText());
  }

  public void testIntentTriggerViaOnClick() {
    buttonId = com.vogella.android.test.simpleactivity.R.id.button1;
    Button view = (Button) activity.findViewById(buttonId);
    assertNotNull("Button not allowed to be null", view);

    view.performClick();

    // TouchUtils cannot be used, only allowed in
    // InstrumentationTestCase or ActivityInstrumentationTestCase2

    // Check the intent which was started
    Intent triggeredIntent = getStartedActivityIntent();
    assertNotNull("Intent was null", triggeredIntent);
    String data = triggeredIntent.getExtras().getString("URL");

    assertEquals("Incorrect data passed via the intent",
        "http://www.vogella.com", data);
  }

}

14. Exercise: functional test for activities

14.1. Write functional test for activities

Create a test project called com.vogella.android.intent.simple.test. Create a new test class called MainActivityFunctionalTest based on the ActivityInstrumentationTestCase2 class.

This class is used to develop the integration tests for the two activities.

package com.vogella.android.test.simpleactivity.test;

import android.app.Activity;
import android.app.Instrumentation;
import android.app.Instrumentation.ActivityMonitor;
import android.test.ActivityInstrumentationTestCase2;
import android.test.TouchUtils;
import android.test.ViewAsserts;
import android.view.KeyEvent;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

import com.vogella.android.test.simpleactivity.R;

import com.vogella.android.test.simpleactivity.MainActivity;
import com.vogella.android.test.simpleactivity.SecondActivity;

public class MainActivityFunctionalTest extends
    ActivityInstrumentationTestCase2<MainActivity> {

  private MainActivity activity;

  public MainActivityFunctionalTest() {
    super(MainActivity.class);
  }

  @Override
  protected void setUp() throws Exception {
    super.setUp();
    setActivityInitialTouchMode(false);
    activity = getActivity();
  }

}

14.2. Write functional test for activities

package com.vogella.android.test.simpleactivity.test;

import android.app.Activity;
import android.app.Instrumentation;
import android.app.Instrumentation.ActivityMonitor;
import android.test.ActivityInstrumentationTestCase2;
import android.test.TouchUtils;
import android.test.ViewAsserts;
import android.view.KeyEvent;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

import com.vogella.android.test.simpleactivity.R;

import com.vogella.android.test.simpleactivity.MainActivity;
import com.vogella.android.test.simpleactivity.SecondActivity;

public class MainActivityFunctionalTest extends
    ActivityInstrumentationTestCase2<MainActivity> {

  private MainActivity activity;

  public MainActivityFunctionalTest() {
    super(MainActivity.class);
  }
  @Override
  protected void setUp() throws Exception {
    super.setUp();
    setActivityInitialTouchMode(false);
    activity = getActivity();
  }

  public void testStartSecondActivity() throws Exception {



    // add monitor to check for the second activity
    ActivityMonitor monitor =
        getInstrumentation().
          addMonitor(SecondActivity.class.getName(), null, false);

    // find button and click it
    Button view = (Button) activity.findViewById(R.id.button1);

    // TouchUtils handles the sync with the main thread internally
    TouchUtils.clickView(this, view);

    // to click on a click, e.g., in a listview
    // listView.getChildAt(0);

    // wait 2 seconds for the start of the activity
    SecondActivity startedActivity = (SecondActivity) monitor
        .waitForActivityWithTimeout(2000);
    assertNotNull(startedActivity);

    // search for the textView
    TextView textView = (TextView) startedActivity.findViewById(R.id.resultText);

    // check that the TextView is on the screen
    ViewAsserts.assertOnScreen(startedActivity.getWindow().getDecorView(),
        textView);
    // validate the text on the TextView
    assertEquals("Text incorrect", "Started", textView.getText().toString());

    // press back and click again
    this.sendKeys(KeyEvent.KEYCODE_BACK);

    TouchUtils.clickView(this, view);
  }
}

To test the direct modification of a view, create the following test class for the SecondActivity class.

package com.vogella.android.test.simpleactivity.test;

import android.app.Activity;
import android.app.Instrumentation;
import android.app.Instrumentation.ActivityMonitor;
import android.test.ActivityInstrumentationTestCase2;
import android.test.TouchUtils;
import android.test.UiThreadTest;
import android.test.ViewAsserts;
import android.view.KeyEvent;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;

import com.vogella.android.test.simpleactivity.R;

import com.vogella.android.test.simpleactivity.MainActivity;
import com.vogella.android.test.simpleactivity.SecondActivity;

public class SecondActivityFunctionalTest extends
    ActivityInstrumentationTestCase2<SecondActivity> {

  private static final String NEW_TEXT = "new text";

  public SecondActivityFunctionalTest() {
    super(SecondActivity.class);
  }

  public void testSetText() throws Exception {

    SecondActivity activity = getActivity();

    // search for the textView
    final TextView textView = (TextView) activity
        .findViewById(R.id.resultText);

    // set text
    getActivity().runOnUiThread(new Runnable() {

      @Override
      public void run() {
        textView.setText(NEW_TEXT);
      }
    });

    getInstrumentation().waitForIdleSync();
    assertEquals("Text incorrect", NEW_TEXT, textView.getText().toString());

  }

  @UiThreadTest
  public void testSetTextWithAnnotation() throws Exception {

    SecondActivity activity = getActivity();

    // search for the textView
    final TextView textView = (TextView) activity
        .findViewById(R.id.resultText);

    textView.setText(NEW_TEXT);
    assertEquals("Text incorrect", NEW_TEXT, textView.getText().toString());

  }

}

15. More on Android testing

15.1. Android additional assertion

The Android testing API provides the MoreAsserts and ViewAsserts classes in addition to the standard JUnit Assert class.

15.2. Android test groups

You can annotate tests with @SmallTest, @MediumTest and @LargeTest and decide which test group you want to run.

The following screenshot shows the selection in the Run Configuration of Eclipse.

Selecting test groups in Eclipse.

This allows you to run, for example, only tests which do not run very long in Eclipse. Long running tests could than run only in the continuous integration server.

15.3. Flaky tests

Actions in Android are sometimes time dependent. To tell Android to repeat a test once it fails, use the @FlakyTest annotation. Via the tolerance attribute of this annotation you can define how often the Android test framework should try to repeat a test before marking it as failed.

16. Exercise: Run tests via Apache Ant

Update your test project called com.vogella.android.test.simpleactivity.test to have a build.xml file.

Afterwards, run the tests with the ant test command.

17. Testing asynchronous processing

Testing asynchronous is challenging. The typical approach is to use an instance of the CountDownLatch class in your test code and signal from the asynchronous processing that the processing was done.

For example the asynchronous processing would allow to register a listener for the processing to which test can subscribe.

For example create a project called com.vogella.android.test.async which allows to trigger an AsyncTask via a button.

The example code for the activity:

package com.vogella.android.test.async;

import android.app.Activity;
import android.os.AsyncTask;
import android.os.Bundle;
import android.view.View;

public class MainActivity extends Activity {

  private IJobListener listener;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
  }

  public static interface IJobListener {
    void executionDone();
  }

  public void setListener(IJobListener listener) {
    this.listener = listener;
  }

  public void onClick(View view) {
    myTask.execute("test");
  }

  final AsyncTask<String, Void, String> myTask = new AsyncTask<String, Void, String>() {

    @Override
    protected String doInBackground(String... arg0) {
      return "Long running stuff";
    }

    @Override
    protected void onPostExecute(String result) {
      super.onPostExecute(result);
      if (listener != null) {
        listener.executionDone();
      }
    }

  };

}

The example code for the test:

package com.vogella.android.test.async.test;

import java.util.concurrent.CountDownLatch;
import java.util.concurrent.TimeUnit;

import android.content.Intent;
import android.test.ActivityUnitTestCase;
import android.widget.Button;

import com.vogella.android.test.async.MainActivity;
import com.vogella.android.test.async.MainActivity.IJobListener;
import com.vogella.android.test.async.R;

public class AsyncTaskTester extends ActivityUnitTestCase<MainActivity> {

  private MainActivity activity;

  public AsyncTaskTester() {
    super(MainActivity.class);
  }

  protected void setUp() throws Exception {
    super.setUp();
    Intent intent = new Intent(getInstrumentation().getTargetContext(),
        MainActivity.class);
    startActivity(intent, null, null);
    activity = getActivity();
  }

  protected void tearDown() throws Exception {
    super.tearDown();
  }

  public void testSomeAsynTask () throws Throwable {
      // create CountDownLatch for which the test can wait.
      final CountDownLatch latch = new CountDownLatch(1);

      activity.setListener(new IJobListener() {

      @Override
      public void executionDone() {
        latch.countDown();
      }
    });

      // Execute the async task on the UI thread! THIS IS KEY!
      runTestOnUiThread(new Runnable() {

          @Override
          public void run() {
            Button button = (Button) activity.findViewById(R.id.button1);
            button.performClick();
          }
      });


      boolean await = latch.await(30, TimeUnit.SECONDS);

      assertTrue(await);
  }

}

18. User interface testing

18.1. Cross-component user interface testing

Functional or black-box user interface testing does test the complete application and not single components of your application.

18.2. uiautomator

The Android SDK contains the uiautomator Java library for creating user interface tests and provides an engine to run these user interface tests. Both tools work only as of API 16.

The uiautomator test projects are standalone Java projects which the JUnit3 library and the uiautomator.jar and android.jar files from the android-sdk/platforms/api-version directory added to the build path.

Androids uiautomator provides the UiDevice class to communicate with the device, the UiSelector class to search for elements on the screen and the UiObject which presents user interface elements and is created based on the UiSelector class. The UiCollection class allows to select a number of user interface elements at the same time and UiScrollable allows to scroll in a view to find an element.

The following coding shows an example test from the official Android developer side. The URL for this is Testing UI example.

package com.uia.example.my;

// Import the uiautomator libraries
import com.android.uiautomator.core.UiObject;
import com.android.uiautomator.core.UiObjectNotFoundException;
import com.android.uiautomator.core.UiScrollable;
import com.android.uiautomator.core.UiSelector;
import com.android.uiautomator.testrunner.UiAutomatorTestCase;

public class LaunchSettings extends UiAutomatorTestCase {

  public void testDemo() throws UiObjectNotFoundException {

    // Simulate a short press on the HOME button.
    getUiDevice().pressHome();

    // We’re now in the home screen. Next, we want to simulate
    // a user bringing up the All Apps screen.
    // If you use the uiautomatorviewer tool to capture a snapshot
    // of the Home screen, notice that the All Apps button’s
    // content-description property has the value “Apps”. We can
    // use this property to create a UiSelector to find the button.
    UiObject allAppsButton = new UiObject(new UiSelector().description("Apps"));

    // Simulate a click to bring up the All Apps screen.
    allAppsButton.clickAndWaitForNewWindow();

    // In the All Apps screen, the Settings app is located in
    // the Apps tab. To simulate the user bringing up the Apps tab,
    // we create a UiSelector to find a tab with the text
    // label “Apps”.
    UiObject appsTab = new UiObject(new UiSelector().text("Apps"));

    // Simulate a click to enter the Apps tab.
    appsTab.click();

    // Next, in the apps tabs, we can simulate a user swiping until
    // they come to the Settings app icon. Since the container view
    // is scrollable, we can use a UiScrollable object.
    UiScrollable appViews = new UiScrollable(new UiSelector().scrollable(true));

    // Set the swiping mode to horizontal (the default is vertical)
    appViews.setAsHorizontalList();

    // create a UiSelector to find the Settings app and simulate
    // a user click to launch the app.
    UiObject settingsApp = appViews
        .getChildByText(new UiSelector()
            .className(android.widget.TextView.class.getName()),
            "Settings");
    settingsApp.clickAndWaitForNewWindow();

    // Validate that the package name is the expected one
    UiObject settingsValidation = new UiObject(new UiSelector()
        .packageName("com.android.settings"));
    assertTrue("Unable to detect Settings", settingsValidation.exists());
  }
}

You need to use Apache Ant to build and deploy the corresponding project.

<android-sdk>/tools/android create uitest-project -n <name> -t 1 -p <path>

# build the test jar
ant build

# push JAR to device
adb push output.jar  /data/local/tmp/

# Run the test
adb shell uiautomator runtest LaunchSettings.jar -c com.uia.example.my.LaunchSettings

18.3. uiautomatorviewer

Android provides the uiautomatorviewer tool, which allows you to analyze the user interface of an application. You can use this tool to find the index, text or attribute of the application.

This tool allows non-programmers to analyze an application and develop tests for it via the uiautomator library.

The tool is depicted in the following screenshot.

uiautomatorviewer in usage

19. Monkey

Monkey is a command line tool which sends pseudo random events to your device. You can restrict Monkey to run only for a certain package and therefore instruct Monkey to test only your application.

For example, the following will send 2000 random events to the application with the de.vogella.android.test.target package.

adb shell monkey -p de.vogella.android.test.target -v 2000

Monkey sometimes causes problems with the adb server. Use the following commands to restart the adb server.

adb kill-server
adb start-server

You can use the -s [seed] parameter to ensure that the generated sequence of events is always the same.

For more info on Monkey please see the Monkey description.

20. monkeyrunner

20.1. Testing with monkeyrunner

The monkeyrunner tool provides a Python API for writing programs that control an Android device or emulator from outside of Android code.

Via monkeyrunner you can completely script your test procedure. It runs via the adb debug bridge and allows you to install program, start them, control the flow and also take screenshots or your application.

To use monkeyrunner, ensure that you have Python installed on your machine and in your path.

In monkeyrunner you have primary the following classes:

  • MonkeyRunner: allows to connect to devices.

  • MonkeyDevice: allows to install and uninstall packages and to send keyboard and touch events to an application.

  • MonkeyImage: allows to create screenshots, compare screenshots and save them.

MonkeyImage can compare the screenshot with an existing image via the sameAs() method. A screenshot contains the Android notifcation bar, including time. You can enter a percentage as second parameter for sameAs() or use the getSubImage() method.

The API reference for monkeyrunner can be generated via the following command.

# outfile is the path qualified name
# of the output file
monkeyrunner help.py help <outfile>

20.2. monkeyrunner example

Ensure Python is installed and in your path. Also ensure the [android-sdk]/tools folder is in your path. Create a file, for example, called testrunner.py

from com.android.monkeyrunner import MonkeyRunner, MonkeyDevice
import commands
import sys
import os

# starting the application and test
print "Starting the monkeyrunner script"

if not os.path.exists("screenshots"):
    print "creating the screenshots directory"
    os.makedirs("screenshots")

# connection to the current device, and return a MonkeyDevice object
device = MonkeyRunner.waitForConnection()

apk_path = device.shell('pm path com.vogella.android.test.simpleactivity')
if apk_path.startswith('package:'):
    print "application installed."
else:
    print "not installed, install APK"
    device.installPackage('com.vogella.android.test.simpleactivity.apk')

print "starting application...."
device.startActivity(component='com.vogella.android.test.simpleactivity/[...CONTINUE]
com.vogella.android.test.simpleactivity.MainActivity')

#screenshot
MonkeyRunner.sleep(1)
result = device.takeSnapshot()
result.writeToFile('./screenshots/splash.png','png')
print "screenshot taken and stored on device"

#sending an event which simulate a click on the menu button
device.press('KEYCODE_MENU', MonkeyDevice.DOWN_AND_UP)

print "Finishing the test"

You run this test via the monkeyrunner testrunner.py command on the console.

21. Common Android testing requires and solution approaches

21.1. Common logging on a server

Frequently the log files of the tests should be stored on a server and not on the device. A good practice is to provide a server backend and post the result via an HTTP request to this server. The server logs it centrally and provides central access to it.

21.2. Triggering system changes via tests

During tests you sometimes want to change the system status, e.g., turn WIFI of, for example. Typically, this cannot be done via the test directly, as the test only has the permissions of the application under test.

A good practice is to install another application on the device which has the required permission and trigger it via an intent from the test.

22. Espresso

Google released the Espresso framework for testing in Oct. 2013. Espresso is a thin layer on top of the Android instrumentation framework to make it easy to write reliable user interface tests.

Espresso is based on JUnit 3 and uses Hamcrest matcher for its checks. To use it download Espresso and Dependencies from the Espresso homepage and add the library to your classpath.

A typical test look is a combination of a view matcher a view action and an assert statement on this view. The following code gives an example. The actual type of the view is irrelevant, you perform your check on the generic View class.

public void testSayHello() {
  // find a view with a specific test and check if it is displayed
  onView(withText("Button")).check(matches(isDisplayed()));
  // others checks are isEnabled() or isFocused()

  // combine them
  onView(withText("Button1")).check(matches(not(isEnabled())));

    // find a view with an ID and type some text into it
  onView(withId(R.id.name_field)).perform(typeText("New text"));
  // find a view and click on it
    onView(withId(R.id.greet_button)).perform(click());

    // check several conditions at once
    onView(allOf(withId(R.id.greet_button), not(withText("Placehodler")));

    // scroll a view
    onView(withId(R.id.listview)).performScroll();

    // scroll and click
    onView(withId(R.id.listview)).perform(scrollTo(), click());
}

If Espresso does not find a view, it includes the whole view hierarchy into the error message, that is useful for analyzing the problem.

To use the Espresso testrunner change the corresponding entry in your AndroidManifest.xml

<instrumentation
  android:name="com.google.android.apps.common.testing.testrunner.GoogleInstrumentationTestRunner"
  android:targetPackage="your_package"/>

If you start your test again, the new test runner is used. You can validate that in your launch configuration.

Espresso launch config

onView scroll automatically. For AdapterViews you can use the onData() method instead of onView().

onData(allOf(is(instanceOf(String.class)), is("Hello")).perform(click()));

23. Other Open Source testing frameworks

Robotium is an Open Source framework on top of the Android testing framework which makes the testing API simpler. See Robotium for user interface testing with the Robotium framework.

Robolectric is an Open Source framework which allows you to run tests which use the Android API directly on the JVM. See the Robolectric tutorial for more information.

Roboguice allows you to use dependency injection in your Android components which simplifies testing. See Using Roboguice.

24. Support this website

This tutorial is Open Content under the CC BY-NC-SA 3.0 DE license. Source code in this tutorial is distributed under the Eclipse Public License. See the vogella License page for details on the terms of reuse.

Writing and updating these tutorials is a lot of work. If this free community service was helpful, you can support the cause by giving a tip as well as reporting typos and factual errors.

24.1. Thank you

Please consider a contribution if this article helped you. It will help to maintain our content and our Open Source activities.

24.2. Questions and Discussion

If you find errors in this tutorial, please notify me (see the top of the page). Please note that due to the high volume of feedback I receive, I cannot answer questions to your implementation. Ensure you have read the vogella FAQ as I don't respond to questions already answered there.

25. Links and Literature

25.1. Source Code

Source Code of Examples

25.3. vogella Resources

vogella Training Android and Eclipse Training from the vogella team

Android Tutorial Introduction to Android Programming

GWT Tutorial Program in Java, compile to JavaScript and HTML

Eclipse RCP Tutorial Create native applications in Java

JUnit Tutorial Test your application

Git Tutorial Put all your files in a distributed version control system
